Stainless steel cable glands are made of high-quality stainless steel material, which provides excellent resistance to corrosion and oxidation.
Accurately selecting the right stainless steel cable glands is crucial because each model only matches specific cable specifications. A wrong selection can lead to poor electrical performance or even circuit failure.
You should consider the following factors:
Cable diameter and type: Choose a stainless steel cable glands that matches the diameter and type of your cable.
Working environment: Consider the operating environment, such as high or low temperature, moisture, and chemical exposure, to ensure that the stainless steel cable glands can withstand the conditions it will encounter.
IP rating: Choose a stainless steel cable glands with a sufficient IP rating to ensure that it’s completely sealed against dust and water ingress.
Correct size: Choose the stainless teel cable glands type that meets your specific application needs, such as cable range, thread type and thread length etc

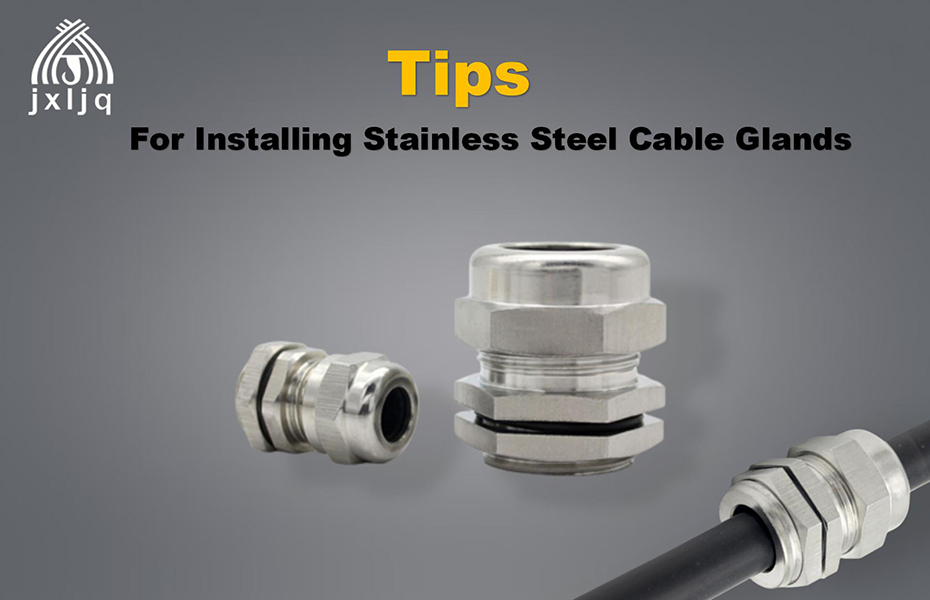

Next, you can install the stainless steel cable glands. Here are some tips:
Install the cable glands in a clean area, free from dust and debris;
Determine the correct orientation and position of the stainless steel cable glands and use the appropriate tools to install it, such as spanner;
Wiring: The wire must be fully inserted into the stainless steel cable glands. Therefore, measure the wire diameter and cable gland hole diameter before connecting to ensure a good connection.
Properly tightening the nut ensures that the stainless steel cable glands is securely fastened, but over-tightening will damage the cable. By using a torque wrench, you can control the torque on important components’ bolts.
Test the stainless steel cable glands and cable to ensure proper operation, and always switch off the power before cutting the power supply or removing the connector.
By following these guidelines, you can extend the life of your stainless steel cable glands and ensure their reliability.
Jixiang Connector is a professional manufacture of stainless steel cable gland.
Not only provide stainless steel cable glands in SS304 and SS316 material, but also provide complete and available sizes for selection.
Welcome to contact us for latest catalogue.
