Product Overview

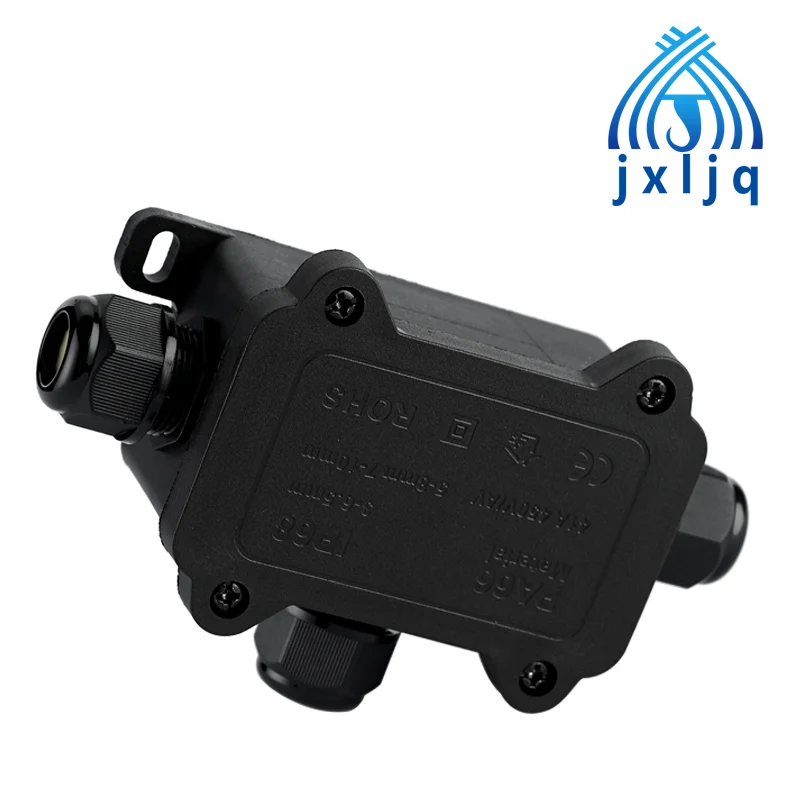

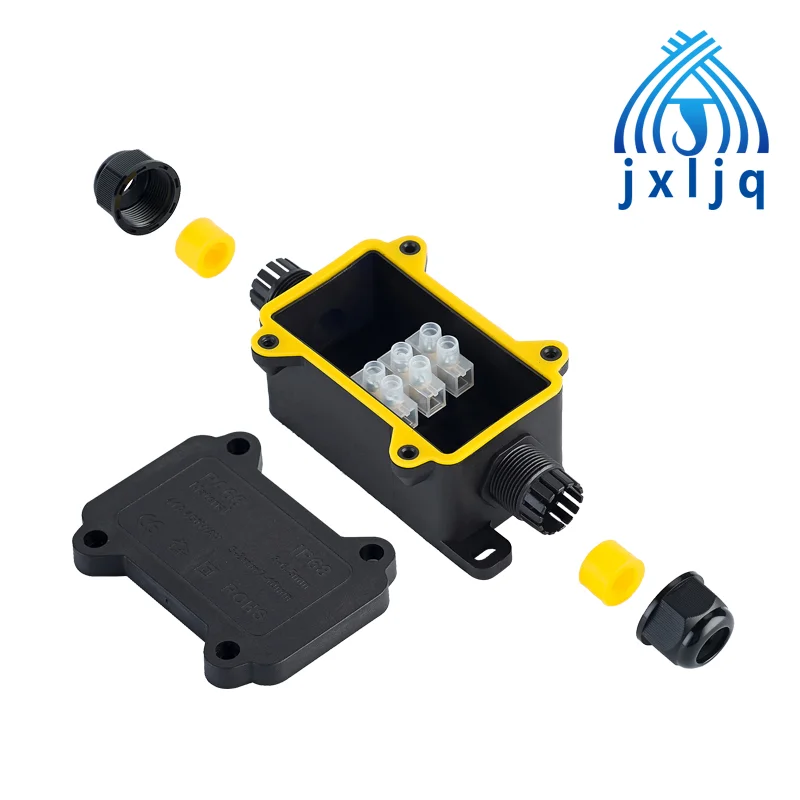

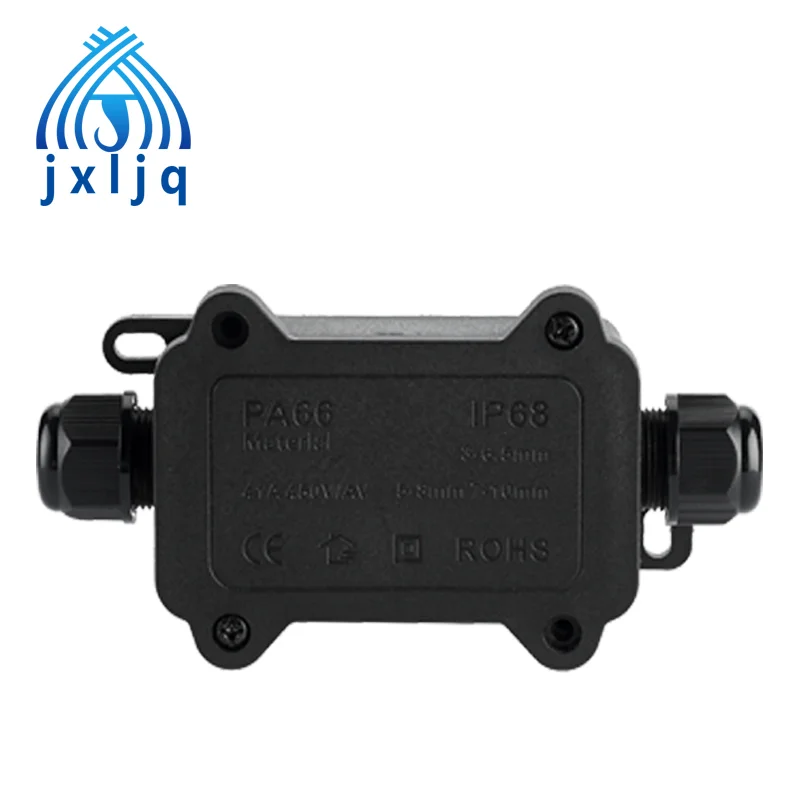

The F1-2T/3T/4T Mini Waterproof Junction Box is a compact, IP68-rated enclosure engineered for reliable cable connection and sealing in outdoor, humid and demanding environments. Its flame-retardant PA6 nylon housing and silicone O-ring deliver outstanding protection against water, dust and moisture, while the nickel-plated 59-1 brass conductors and screw-crimping wiring method ensure a secure, stable electrical connection every time.
Available in 2-way, 3-way and 4-way opening configurations with three rubber plug options, the F1 series covers cable diameters from 3mm to 10mm, making it a versatile solution for garden lighting, security systems, solar connections, water pumps and general outdoor electrical wiring.
Key Features
- IP68 protection against dust and continuous water immersion
- Flame-retardant PA6 nylon housing with high mechanical strength
- Silicone O-ring seal for long-lasting waterproofing
- Nickel-plated 59-1 brass conductors for reliable connection
- Screw-crimping wiring for fast and secure termination
- 2-way, 3-way and 4-way configurations available
- Wide cable range: 3-6.5mm, 5-8mm, 7-10mm
- V0 flame retardant rating (UL94)
Technical Specifications
| Parameter | Value |
|---|---|
| Protection level | IP68 |
| Temperature resistance | -40°C to +105°C |
| Storage temperature | Room temperature |
| Main material | PA6 nylon (flame retardant) |
| O-ring material | Silicone (environmentally friendly) |
| Applicable cable range | 3-6.5mm / 5-8mm / 7-10mm |
| Wiring method | Screw crimping |
| Conductor material | 59-1 brass, nickel plated |
| Applicable wire square | 0.5-4mm² / 0.5-2.5mm² |
| Voltage withstand | 1500V |
| Voltage/current | 16A/450V, 24A/450V |
| Flame retardant rating | V0 |
Model & Ordering Information
| Order No | MN-01 | MN-02 | MN-03 | MH-05 | MH-06 | MH-07 | MN-8 | MN-9 |
| Open | 2-way | 2-way | 2-way | 3-way | 3-way | 3-way | 4-way | 4-way |
| Cable range (mm) | 3-6.5 | 5-8 | 7-10 | 3-6.5 | 5-8 | 7-10 | 3-6.5 | 5-8 |
| Per pcs weight (g) | 71.6 | 72.8 | 70.8 | 78.8 | 77.4 | 76.5 | 85.0 | 79.5 |
Applications
- Outdoor garden and landscape lighting
- Security and CCTV camera connections
- Solar panel and renewable energy wiring
- Water pumps and irrigation systems
- Street and architectural lighting
- General indoor/outdoor electrical junction
OEM & Customization Service
As a professional cable gland and waterproof connector manufacturer with 13+ years of experience, Jixiang Connector provides OEM/ODM services including custom models, cable ranges and packaging. Low MOQ available, 2 free samples for testing, and samples can be delivered within 3-7 days.
