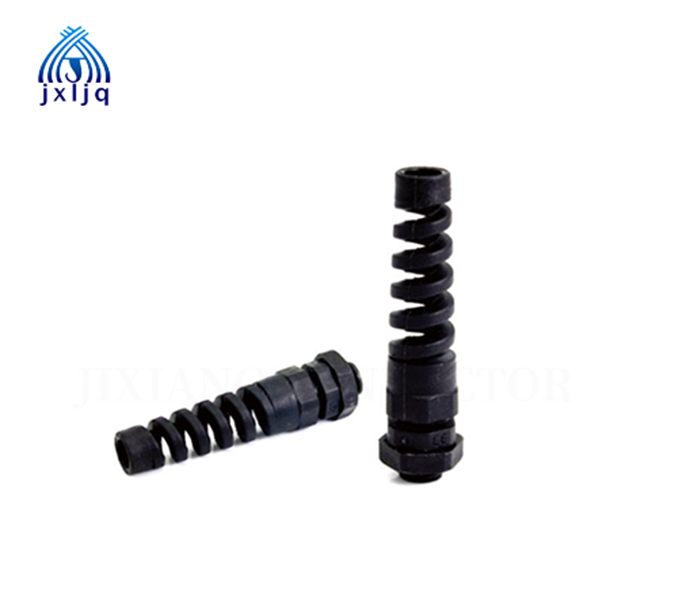

Material: Nylon PA66
Sealing material: Nitrile butadiene rubber(nbr), weathering resistance rubber(epdm)
Working temperature;-40C to 100°C in static state, short time to 120°c;- 20°C to 80°C in dynamic state, short time to10oc
Protection degree: lP68(rotate the part,and use o ring)
Product Features
Material: Nylon PA66
Sealing material: Nitrile butadiene rubber(nbr), weathering resistance rubber(epdm)
Working temperature;-40C to 100°C in static state, short time to 120°c;- 20°C to 80°C in dynamic state, short time to10oc
Protection degree: lP68(rotate the part,and use o ring)
Color:black(ral9005); light grey(ral 7035);special color can feel free to contact us
PG/M TYPE
| Code | Model | Cable Range (mm) | Thread O.D. AG(mm) | Thread engt GL(mm) | Spanner size (mm) |
| JX-PG7-NFL | PG7 | 3-6.5 | 12.5 | 8 | 16 |
| JX-PG9-NFL | PG9 | 4~8 | 15.2 | 8 | 19 |
| JX-PG11-NFL | PG11 | 5-10 | 18.6 | 8 | 22 |
| JX-PG13.5-NFL | PG13.5 | 6-12 | 20.4 | 9 | 24 |
| JX-PG16-NFL | PG16 | 10-14 | 22.5 | 10 | 27 |
| JX-PG21-NFL | PG21 | 13-18 | 28.3 | 10 | 33 |
| JX-M12-NFL | M12 | 3-6.5 | 12 | 8 | 16 |
| JX-M16-NFL | M16 | 4~8 | 16 | 8 | 19 |
| JX-M18-NFL | M18 | 5-10 | 18 | 8 | 22 |
| JX-M20-NFL | M20 | 6-12 | 20 | 9 | 24 |
| JX-M22-NFL | M22 | 10-14 | 22 | 10 | 27 |
| JX-M25 -NFL | M25 | 13-18 | 25 | 10 | 33 |
| JX-M27-NFL | M27 | 13-18 | 27 | 10 | 33 |
