Product Overview

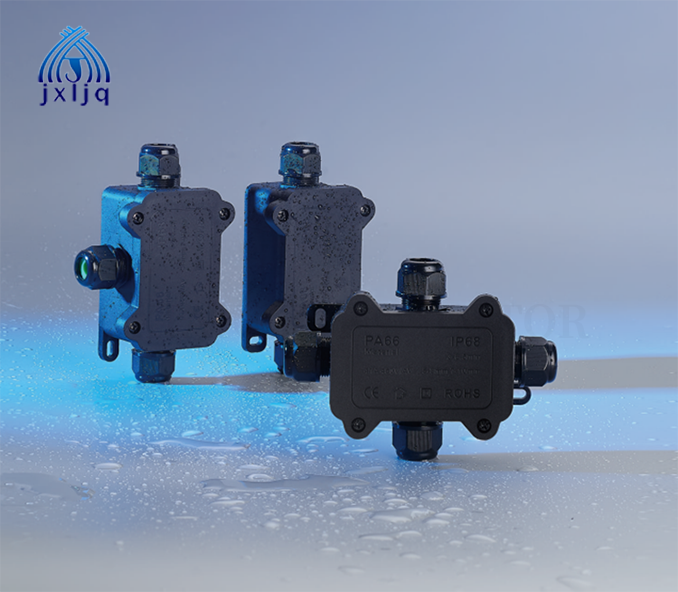

The F1 Series Mini Junction Box is a compact, IP68-rated waterproof junction box manufactured in flame-retardant PA66 nylon with a silicone O-ring. It provides reliable cable connection and sealing for outdoor and humid environments, with screw-crimping wiring and nickel-plated brass conductors.

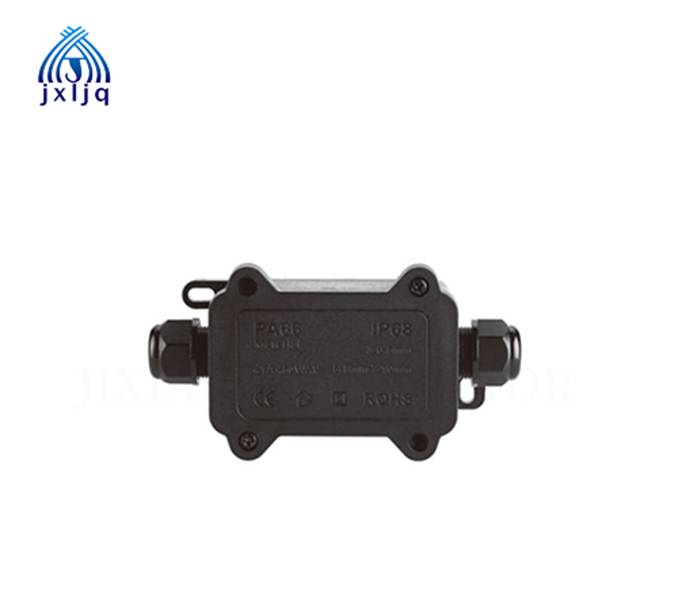

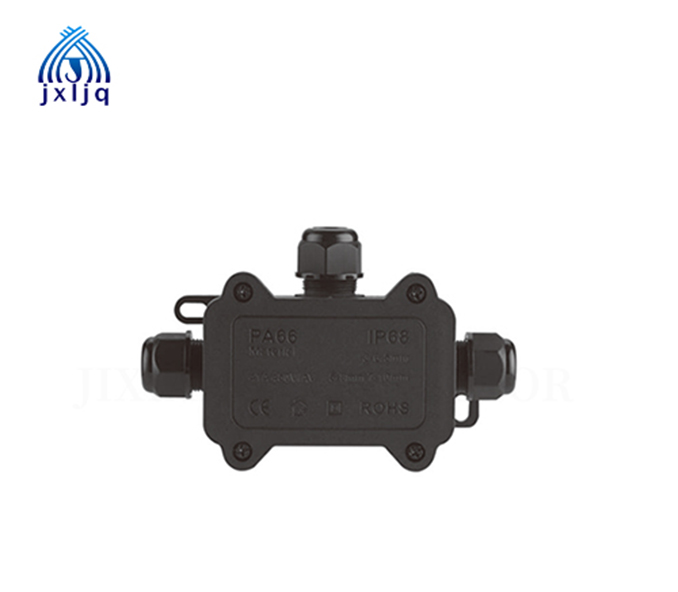

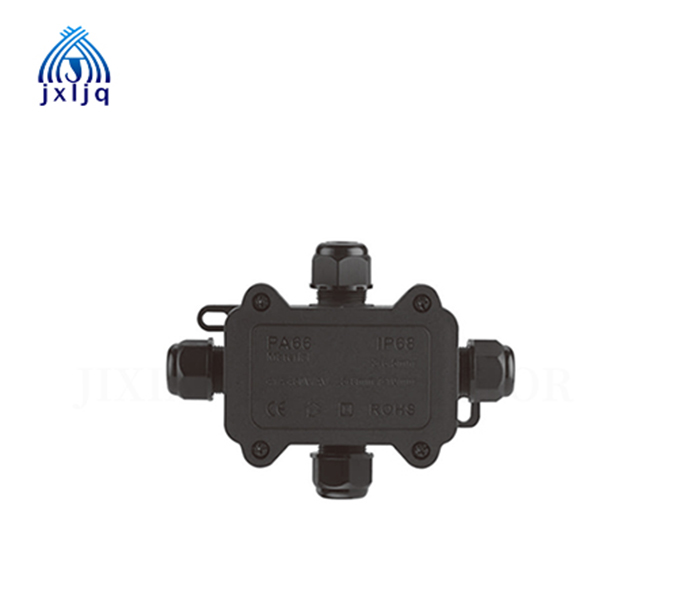

Available in 2T, 3T and 4T core versions with three cable range options, the F1 series is the compact choice for space-constrained wiring applications.
Key Features
- IP68 protection grade
- Flame-retardant PA66 nylon, silicone O-ring
- Temperature resistance -40°C to +105°C
- 2T, 3T and 4T versions available

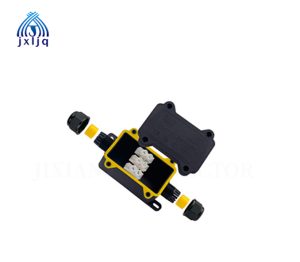

- Screw-crimping wiring with nickel-plated brass conductors
- V0 flame retardant grade
Technical Specifications
| Parameter | Value |
|---|---|
| Protection grade | IP68 |
| Temperature resistance | -40°C to +105°C |
| Main material | Nylon PA66 (flame retardant) |
| O-ring material | Silicone |
| Wiring method | Screw crimping |
| Conductor material | 59-1 brass |
| Rated voltage/current | 450V/24A |
| Flame retardant grade | V0 |
| Core versions | 2T, 3T, 4T |
Applications
- Garden and landscape lighting
- Security and CCTV camera wiring
- Solar and renewable energy connections
- Water pumps and irrigation systems
- LED and architectural lighting
- General indoor/outdoor junction
OEM & Customization Service
As a professional waterproof junction box manufacturer with 13+ years of experience, Jixiang Connector provides OEM/ODM services including custom models, cable ranges and packaging. Low MOQ available, 2 free samples for testing, and samples can be delivered within 3-7 days.
