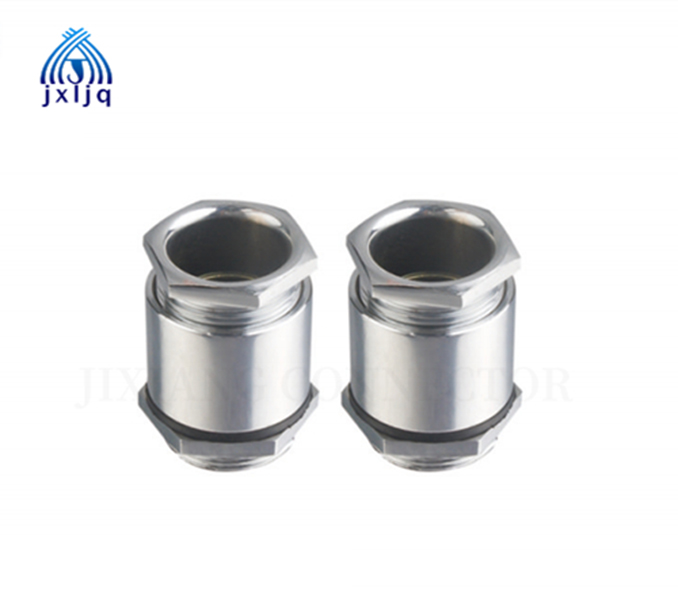

Product features
Product material: D,D1 parts are made of brass chrome plated, the clamping ring is made of NBR.
Protection level: within the specified bayonet range, the rubber gasket is used to rotate the pressing head, reaching IP54.
Operating temperature: static:-40C -110°CC, maximum 120 C; dynamic:-20°C -80°C, maximum 100°C Product certification: IP68, ISO9001,TUV
Application: instrument, ship, machinery, electrical, transportation, medicine, oil field , cable fixing
Remark: can accept the special specification to make to order the business, welcome to call theletter to deign to inquire.
| Code | Gland size | d(mm) | D(mm) | dl(mm) | Dl(mm) | H(mm) | Hl(mm) | cable range(mm) |
| JX-TJ8 | TJ-8 | 8 | M16*l | M14*l | 20 | 32 | 9 | 5-7 |
| JX-TJ13 | TJ-13 | 13 | M20*l | M18*l | 24 | 35 | 10 | 6-12 |
| JX-TJ16 | TJ-16 | 16 | M27*1.5 | M22*1.5 | 31.5 | 40 | 12 | 11-15 |
| JX-TJ19 | TJ-19 | 19 | M30*1.5 | M27*1.5 | 34.5 | 42 | 12 | 14-18 |
| JX-TJ24 | TJ-24 | 24 | M35*1.5 | M30*1.5 | 39.6 | 44 | 12 | 17-23 |
| JX-TJ28 | TJ-28 | 28 | M42*2 | M36*1.5 | 46.5 | 46 | 15 | 22-27 |
| JX-TJ34 | TJ-34 | 34 | M47*2 | M42*2 | 54 | 49 | 15 | 26-33 |
| JX-TJ42 | TJ-42 | 42 | M55*2 | M52,2 | 62 | 54 | 15 | 32-41 |
| JX-TJ50 | TJ-50 | 50 | M62*2 | M58*2 | 68.5 | 56 | 15 | 40-49 |
| JX-TJ58 | TJ-58 | 58 | M71*2 | M68*2 | 77.5 | 56 | 20 | 48-57 |
