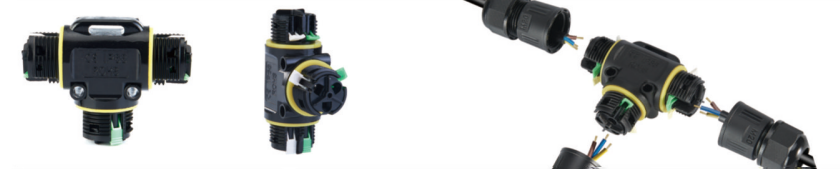

T-type Waterproof Connector

Protection grade:Ip68
Temperature resistance:-40℃to105℃
Storagetemperature:room temper
Main material:nylon PA66
O-ring material:silicone(environmental protection material)

Product Description About Us

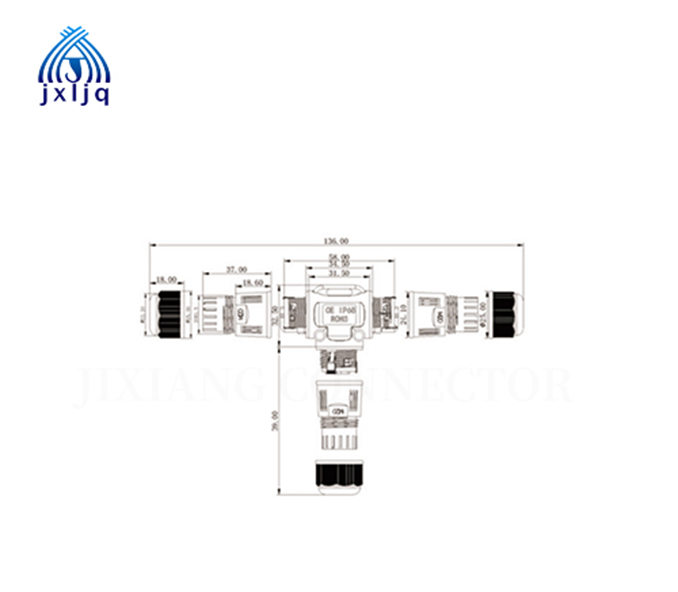

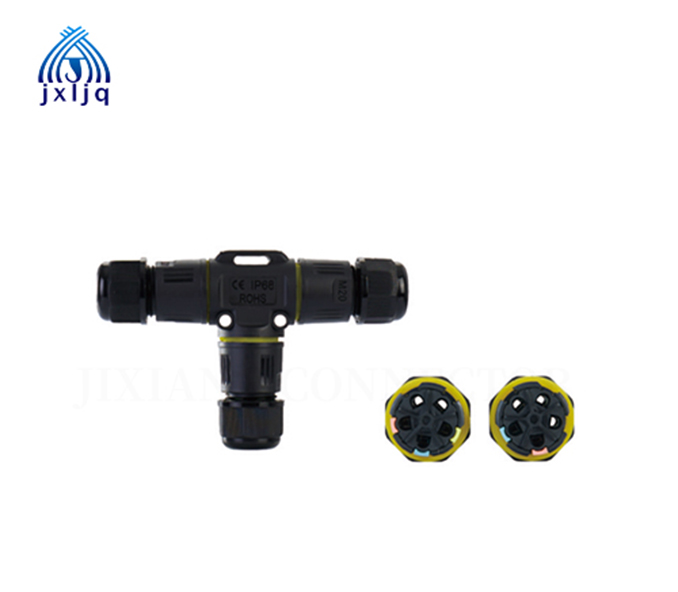

JX-TXM20

Protection grade:Ip68
Temperature resistance:-40℃to105℃
Storagetemperature:room temper
Main material:nylon PA66
O-ring material:silicone(environmental protection material)
Applicable cable scope:Ф3-6.5 Ф9-12
Wiring method:screw crimping
Conductormaterial:Y2 brass nickel plated high quality stainless steel
Applicableline square number: 0.5~2.5mm
Test voltage: 1500V
Rated voltage/current:380V/16A
Flame retardant grade:V0
Packaging quantity:10pcs per bag,24 bags per carton
carton size:49cm*35cm*23cm

Model TXM20-06
5-8
TXM20-07
9-12
TXM20-08
5-8
TXM20-09
9-12
Quantity/bag 10 10 10 10
core 2 Core 2 Core 3 Core 3 Core
Cable range(mm) 5-8 9-12 5-8 9-12
Per Pcs weight(g) 61.8 60.4 66.2 64.8
one carton weight (kg) 15.8 15.5 17 16.5

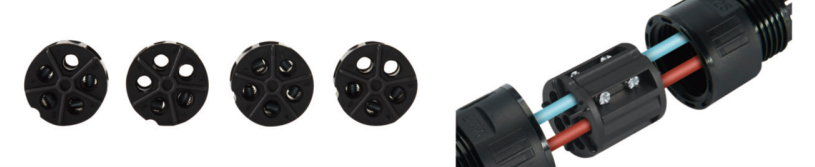

1.Insert the wire into the hole of the copper piece, then fasten the handle (as shown) ; 2.Install thelocking torque of 0.6-0.8 N.M, not too large torque, affect product performance
3 , Assembly gap should be less than 0.2 mm, assembly should be tight, not loose ; 4, Optional wire clip plug specifications(as shown in Figure 2)

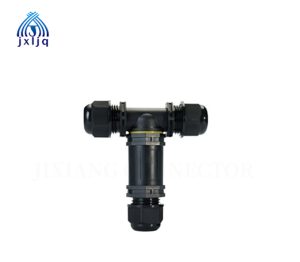

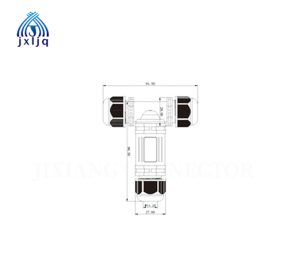

JX-TXM25

Protection grade:Ip68
Temperature resistance:-40℃to105℃
Storagetemperature:room temper
Main material:nylon PA66
O-ring material:silicone(environmental protection material)
Applicable cable scope:Ф3-6.5 Ф9-12 Ф10-14
Wiring method:screw crimping
Conductormaterial:Y2 brass nickel plated high quality stainless steel
Applicableline square number: 0.5~2.5mm
Test voltage: 1500V
Rated voltage/current:380V/16A
Flame retardant grade:V0
Packaging quantity:5pcs per bag,24 bags per carton,
carton size:49cm*35cm*23cm

Model TXM25-3
5-8
XM25-32
9-12
TXM25-33
10-14
TXM25-34
5-8
TXM25-35
9-12
TXM25-36
10-14
TXM25-37
5-8
TXM25-38
9-12
TXM25-39
10-14
TXM25-40
5-8
TXM25-41
9-12
TXM25-42
10-14
Quantity/bag 5 5 5 5 5 5 5 5 5 5 5 5
core 2 Core 2 Core 2 Core 3 Core 3 Core 3 Core 4 Core 4 Core 4 Core 5 Core 5 Core 5 Core
Cable range(mm) 5-8 9-12 10-14 5-8 9-12 10-14 5-8 9-12 10-14 5-8 9-12 10-14
Per Pcs weight(g) 63.8 62.6 61.4 65.8 64.6 63.4 67.8 66.6 65.2 69.8 68.6 67.4
one carton weight (kg) 8.6 8.5 8.3 9.2 8.7 8.6 9.17 9 8.8 9.3 9.2 9

1.Insert the wire into the hole ofthe copper piece, then fasten the handle(as shown) ;2.Install the  locking torque of0.6-0.8  N.M,  not too  large torque, affect  product  performance
3,Assembly  gap  should  beless  than  0.2mm,assembly  should  be  tight,not  loose ;4,Optional wire clip plug specifications(as shown in  Figure 2)
