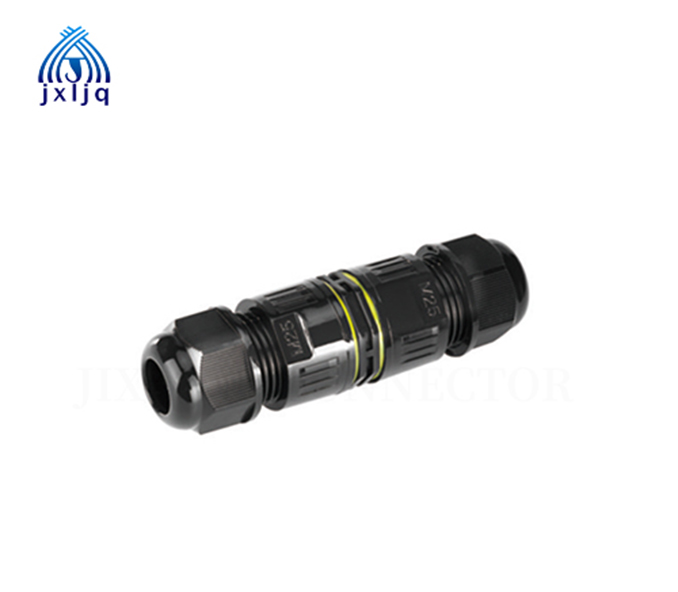

JX-ZXFTM25
Protection grade:Ip68
Temperature resistance:-40℃to105℃
Storagetemperature:room temper
Main material:nylon PA66(flame retardant)
O-ring material:silicone(environmental protection material)
Applicable cable scope:Ф3-6.5 Ф9-12 Ф10-14
JX-ZXFTM25
1.Insert the wire into the hole of the copper piece, then fasten the handle (as shown)
2.Install the locking torque of 0.6-0.8N.M, not too large torque, affect product performance
3,Assembly gap should be less than 0.2 mm, assembly should be tight, not loose

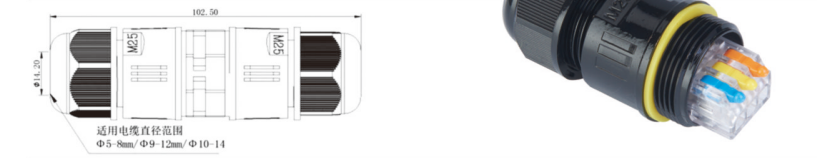

4, Optional wire clip plug specifications(as shown in Figure )
| Model | FTM25-2 5-8 |
FTM25-22 9-12 |
FTM25-23 10-14 |
FTM25-24 5-8 |
FTM25-25 9-12 |
FTM25-26 10-14 |
| Ouantity/bag | 10 | 10 | 10 | 10 | 10 | 10 |
| core | 2 core | 2 core | 2 core | 3 core | 3 core | 3 core |
| number lock | 5-8 | 9-12 | 10-14 | 5-8 | 9-12 | 10-14 |
| Per Pcs weight(g) | 44.8 | 43.2 | 42.2 | 46.8 | 45.4 | 44.2 |
| one box weight(kg) | 17.2 | 16.7 | 16.3 | 17.9 | 17.5 | 17 |
Protection grade:Ip68
Temperature resistance:-40℃to105℃
Storagetemperature:room temper
Main material:nylon PA66(flame retardant)
O-ring material:silicone(environmental protection material)
Applicable cable scope:Ф3-6.5 Ф9-12 Ф10-14
Wiring method:screw crimping
Conductormaterial:Y2 brass nickel plated high quality stainless steel
Applicableline square number: 0.5~2.5mm
Test voltage: 2500V
Rated voltage/current:400V/25A
Flame retardant grade:V0
Packaging quantity:10pcs per bag,24 bags per carton,
carton size:49cm*35cm*23cm
