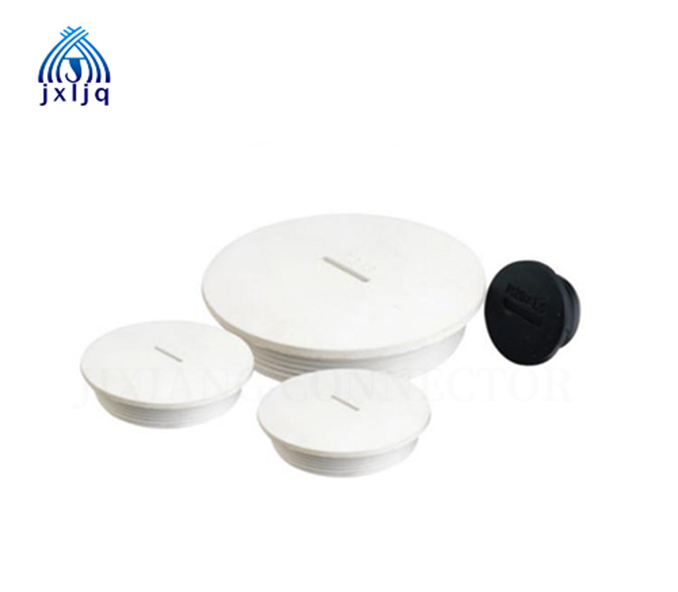

Material: Nylon Pa66
Sealing material: NBR, EPDM
Working temperature:-40°C to 100c in static state, short time to 120°C;
-20°C to 80°C in dynamic state, short time tolOO°C
Protection degree:IP68(rotate the part, and use oring)
Product Features
Material: Nylon Pa66
Sealing material: Nitrile butadiene rubber(nbr), weathering resistance rubber(epdm)
Working temperature:-40°C to 100c in static state, short time to 120°C;
-20°C to 80°C in dynamic state, short time tolOO°C
Protection degree:IP68(rotate the part, and use oring)
Color:black(ral9005), light grey(ral7035), as well as special colors that can be designed at request
| Model | Thread O.D. AG(mm) |
Thread Length GL(mm) |
Main Bodyo Dimension H(mm) |
Cover Dimensions D(mm) |
| JX-PG7-NSC | 12.5 | 8.5 | 12.5 | 15 |
| JX-PG9-NSC | 15.2 | 8.5 | 13 | 19 |
| JX-PG11-NSC | 18.6 | 9 | 13 | 22 |
| JX-PG13.5-NSC | 20.4 | 9 | 13 | 25 |
| JX-PG16-NSC | 22.5 | 10.5 | 15 | 27 |
| JX-PG21-NSC | 28.3 | 10.5 | 15.5 | 33 |
| JX-PG29-NSC | 37 | 11.5 | 16 | 44 |
| JX-PG36-NSC | 47 | 13.5 | 18 | 55 |
| JX-PG42-NSC | 54 | 13.5 | 18.5 | 62 |
| JX-PG48-NSC | 59.3 | 14.5 | 19.5 | 68 |
| Model | Thread O.D. AG(mm) |
Thread Length GL(mm) |
Main Bodyo Dimension H(mm) |
Cover Dimensions D(mm) |
| JX-M12-NSc | 12 | 8.5 | 12.5 | 15 |
| JX-M16-NSC | 16 | 8.5 | 13 | 19 |
| JX-M18-NSC | 18 | 9 | 13 | 22 |
| JX-M20-NSC | 20 | 9 | 13 | 25 |
| JX-M22-NSC | 22 | 10.5 | 15 | 27 |
| JX-M25-NSC | 25 | 10.5 | 15.5 | 30 |
| JX-M27-NSC | 27 | 10.5 | 15.5 | 33 |
| JX-M32-NSC | 32 | 10.5 | 16 | 38 |
| JX-M40-NSC | 40 | 11.5 | 16 | 46 |
| JX-M50-NSC | 50 | 13.5 | 18 | 56 |
| JX-M63-NSC | 63 | 14 | 19 | 68 |
