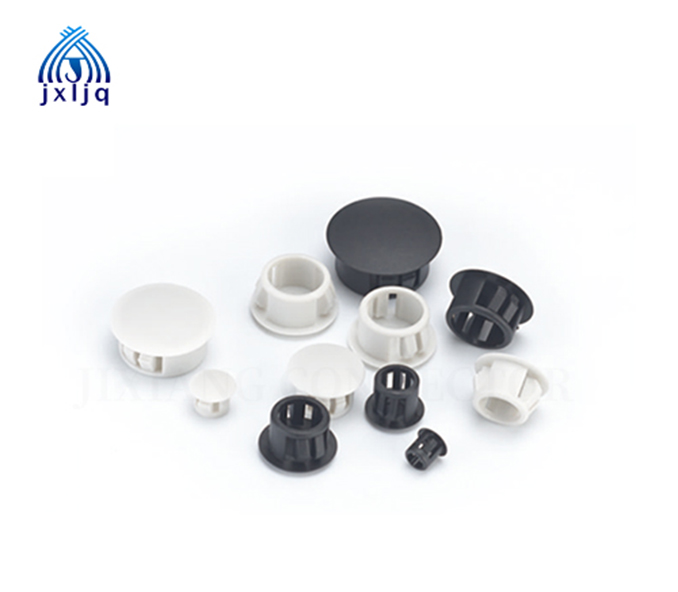

Product Features
Material: Nylon pa66
Sealing material: Nitrile butadiene rubber(nbr), weathering resistance rubber(epdm)
Working temperature:-40°C to 100c in static state, short time to 120°C;
-20°C to 80°C in dynamic state, short time tolOO°C
Protection degree:IP68(rotate the part, and use oring)
Cotor:black(ral9005), light grey(ral7035), as well as special colors that can be designed at request
A: Opening diameter B: Plug cap diameter C: Plug height
Note: If there is any error in manual measurement, please refer to the actual object. Unit: mm
| Model | A hole diameter (mm) | cable range (mm) | Outside diameter (mm) | Height (mm) | Quantity of packing |
| M5 | 4.8 | 4.8-5.5 | 7 | 7.8 | 1000 |
| M6 | 5.8 | 5.9-6.2 | 7.8 | 7.9 | 1000 |
| M8 | 7.8 | 7.8-9.1 | 10.4 | 7.9 | 1000 |
| MIO | 9.8 | 9.8-11.1 | 13 | 10.8 | 1000 |
| Mil | 10.8 | 10.8-12 | 13 | 10.8 | 1000 |
| M12 | 11.8 | 11.8-13 | 15 | 10.8 | 1000 |
| M13 | 12.7 | 12.7-13.5 | 17 | 10.8 | 1000 |
| M14 | 13.7 | 13.7-15 | 17 | 10.8 | 1000 |
| M15 | 14.7 | 14.7-16 | 17.7 | 10.8 | 1000 |
| M16 | 15.7 | 15.7-17 | 20 | 10.8 | 1000 |
| M18 | 17.7 | 17.7-19 | 21.7 | 11.1 | 1000 |
| M19 | 18.6 | 18.6-19.5 | 23.5 | 10.7 | 1000 |
| Model | A hole diameter (mm) | cable range (mm) | Outside diameter (mm) | Height (mm) | Quantity of packing |
| M20 | 19.7 | 19.7-21 | 23.5 | 10.8 | 1000 |
| M22 | 21.7 | 21.7-23 | 26.5 | 11.6 | 500 |
| M25 | 24.7 | 24.7-26 | 29 | 11.5 | 500 |
| M28 | 27.6 | 27.6-29 | 34 | 11.3 | 500 |
| M30 | 29.7 | 29.7-31 | 34 | 11.3 | 500 |
| M32 | 31.7 | 31.7-33 | 36.5 | 11.1 | 500 |
| M35 | 34.7 | 34.7-36 | 39.7 | 11.5 | 400 |
| M38 | 37.7 | 37.7-39 | 42.5 | 11.3 | 400 |
| M40 | 39.7 | 39.7-42 | 46.3 | 11.5 | 300 |
| M45 | 44.7 | 44.7-46 | 50.2 | 11.5 | 200 |
| M50 | 49.7 | 49.7-51 | 55.3 | 11.5 | 200 |
| M60 | 59.7 | 59.7-61 | 64.7 |
