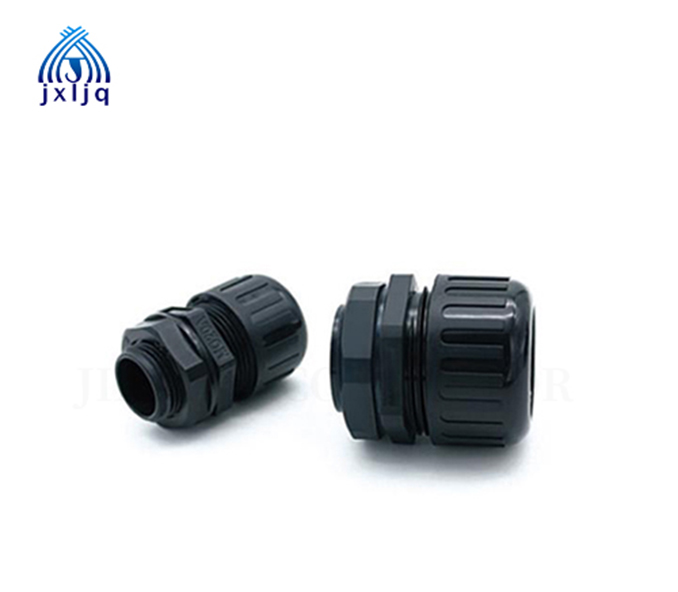

Nylon Watertight Fitting Gland

Thread:Metric,PG,G(PF),
Materiais: Nylon PA66for A.C.F parts ;EPDM rubber for B.D parts ;
(Accept to make super rubber:resist high temperature rubber,resist strongacid/alkali,etc).
protection degree:lP68-10 Bar

Product Description About Us

Watertight Fitting Gland

Thread:Metric,PG,G(PF),
Materiais: Nylon PA66for A.C.F parts ;EPDM rubber for B.D parts ;
(Accept to make super rubber:resist high temperature rubber,resist strongacid/alkali,etc).
protection degree:lP68-10 Bar
Working temperature:-40°℃ to 100°C in static state,or instaneous heat resistance up to120℃;-20℃ to 8oC in dynamic state,or instantaneous heat resistance up to 100″”℃.Features:The Powerful Watertight Fitting build the best tightening power by a veryhigh and active compression force to resit the ingress of
high pressure water jet fon any angle which can provide 100% dynamic waterproof andairtight performance overthe widest range ofcorrugated tubings.
Note:Specialsize and type,please contact us

Model Accommodated Pipes Thread Thread O.D C1(mm) Threadlength C2(mm)
JX-M12-10 AD10 M12*1.5 12 9
IX-M16-NC13
JX-M16-NC13L
AD 13 M16*1.5
M16*1.5
16
16
10
15
JX-M16-NC15.8 AD15.8 M16*1.5
M20*1.5
M20*1.5
M22*1.5
M25*1.5
16
20
20
22
25
15
10
15
15
15
JX-M20-NC15.8
JX-M20-NC15.8L
JX-M22-NC15.8
JX-M25-NC15.8
JX-M16-NC18.5
JX-M20-NC18.5
JX-M20-NC18.5
LJX-M22-NC18.5
AD18.5 M16*1.5
M20*1.5
M20*1.5
M22*1.5
16
20
20
22
15
10
15
15
JX-M16-NC21.2
JX-M20-NC21.2
JX-M25-NC21.2
JX-M25-NC21.2L
AD21.2 M16*1.5
M20*1.5
M25*1.5
M25*1.5
16
20
25
25
15
15
10
15
JX-M25-NC25 AD 25 M25*1.5 25 15
JX-M25-NC28.5 AD 28.5 M25*1.5 25 15
JX-M32-NC34.5 AD 34.5 M32*1.5 32 15
JX-M40-NC42.5
JX-M5O-NC42.5
AD 42.5 M40*1.5
M50*1.5
40
50
15
15
JX-M5O-NC48.5 AD 48.5 M50*1.5 50 15
JX-M50-NC54.5
JX-M63-NC54.5
AD54.5 M50*1.5
M63*1.5
50
63
25
25
JX-PG7-NC10
JX-PG9-NC10
AD 10 PG7
PG9
12.5
15.2
9
10
JX-PG9-NC13
JX-PG11-NC13
AD 13 PG9
PG11
15.2
18.6
10
10
JX-PG11-NC15.8
JX-PG13.5-NC15.8
JX-PG16-NC15.8
AD 15.8 PG11
PG13.5
PG16
18.6.
20.4
22.5
10
10
10.8
JX-PG13.5-NC18.5
JX-PG16-NC18.5
AD 18.5 PG13.5
PG16
20.4
22.5
10
10.8
JX-PG16-NC21.2
JX-PG21-NC21.2
AD21.2 PG16
PG21
22.5
28.3
10.8
13
JX-PG21-NC25
JX-PG21-NC28.5
AD25.0 PG21
PG21
28.3
28.3
13
13
JX-PG29-NC34.5 AD28.5 PG29 37 13
JX-PG36-NC42.5 AD34.5 PG36 47 15
JX-PG42-NC42.5 AD42.5 PG42 54 16
JX-PG42-NC48.0 AD48.0 PG42 54 16
JX-PG48-NC54.5 AD54.5 PG48 59.3 26
JX-PF1/4-NC10 AD10 G(PF)1/4″” 13.1 9
JX-PF3/8-NC13 AD 13 G(PF)3/8″‘ 16.6 15
JX-PF1/2-NC15.8 AD15.8 G(PF)1/2″ 20.9 15
JX-PF1/2-NC18.5 AD18.5 G(PF)1/2″ 20.9 15
JX-PF1/2-NC21.2
JX-PF3/4-NC21.2
AD21.2 G(PF)1/2″
G(PF)3/4″”
20.9
26.4
15
15
JX-PF3/4-NC28.5
JX-PF1-NC34.5
AD 28.5 G(PF)3/4″”
G(PF)1″”
26.4
33.2
15
15
JX-PF11/4-NC42.5
JX-PF11/2-NC54.5
AD 34.5
AD42.5
G(PF)11/4″”
G(PF)11/2″”
41.9
48
15
15
JX-PF2-NC54.5 AD54.5 G(PF)2″ 60 26
