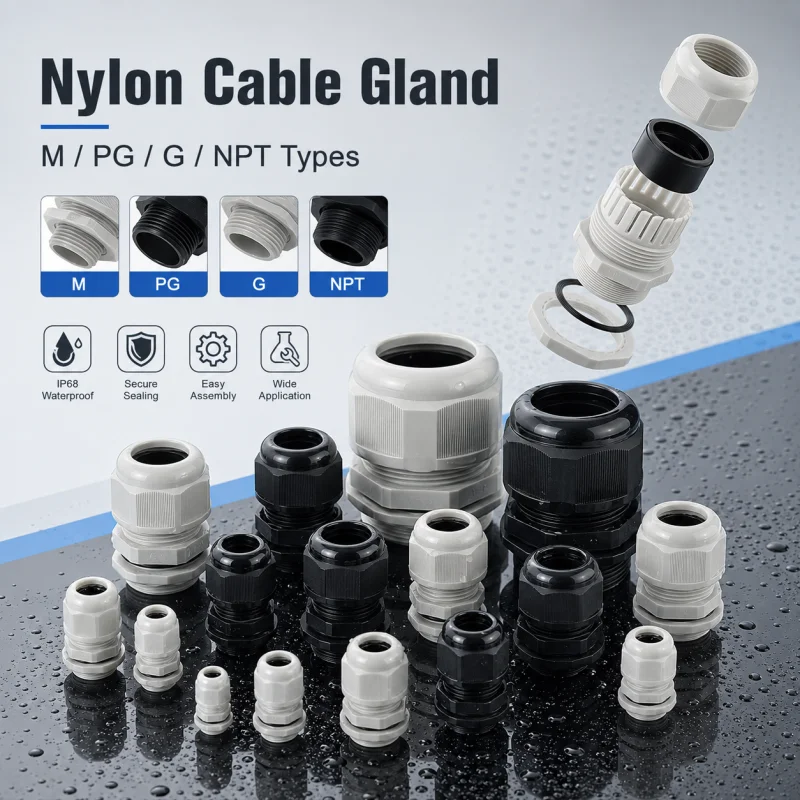

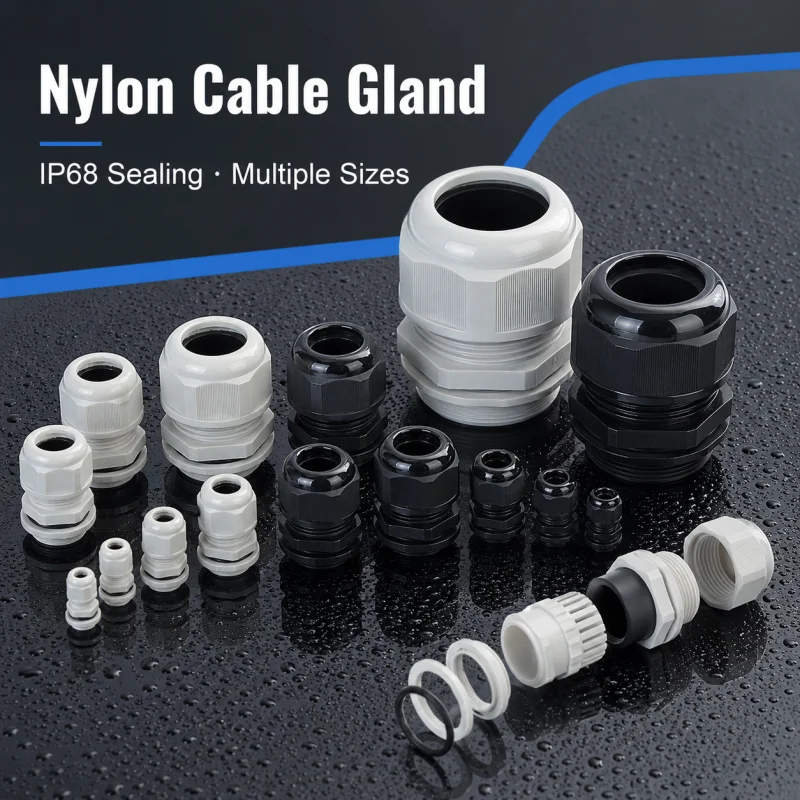

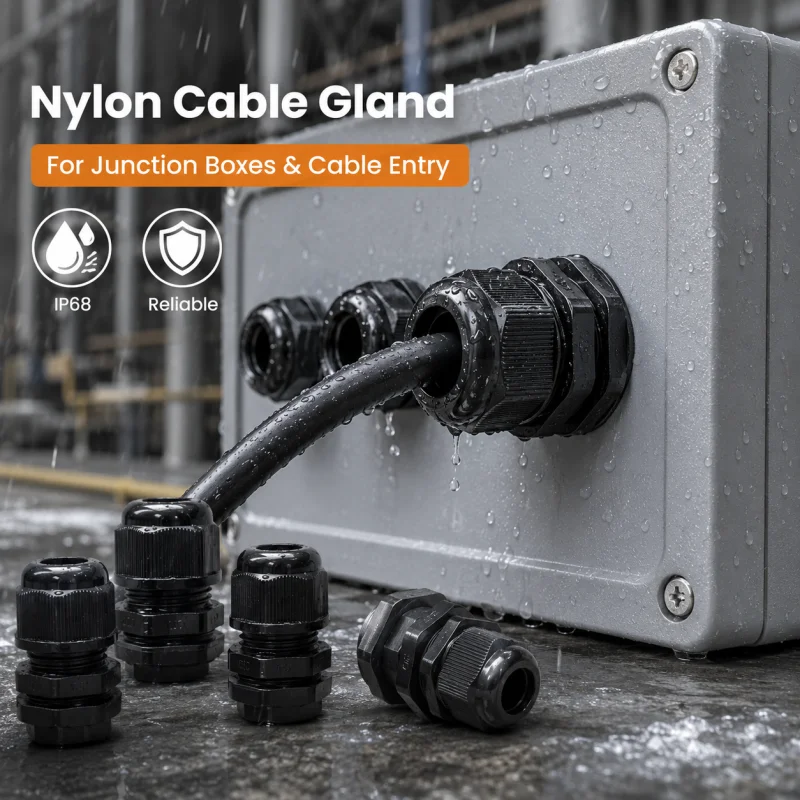

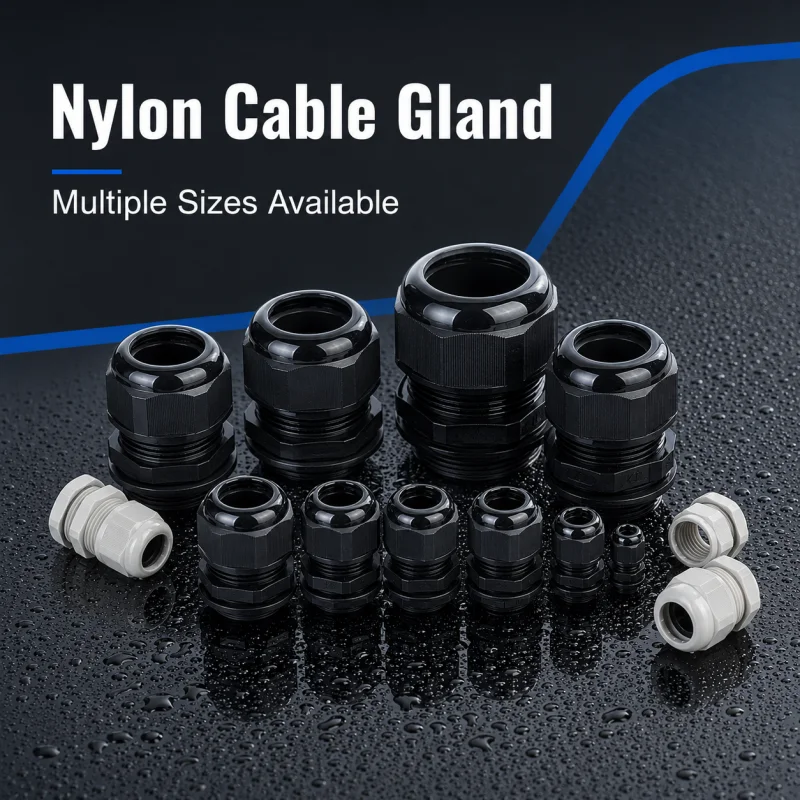

Nylon Cable Gland
Thread:Metric,PG,G(PF),and NPT thread.
Material:PA6
EPDM rubber for B.D parts;
(Accept to make super rubber:resist high temperature rubber,resist strongacid/alkali,etc).
Protection degree:IP68-10 Bar
Working temperature:-40℃ to 100℃ in static state,or instaneous heat resistance up to 120℃;
-20℃ tosocin dynamic state,or instantaneous heat resistance up to 100℃.
Features:The claws and seals of excellent design,sealing nut hace a ‘click ‘sound and re-open,can holdcable firmly and have a wider cable range.
Resistant to salt water,weak acid,alcohol,oil,grease andcommon solvency.
Colours:Black RAL(9005),Grey (RAL7035)other color available upon request.
Note:Special size and type,please contact us
Product Features
Material: Nylon PA66,NBR
Thead specification: Metric,PG,G,NPT.
Working temperature;-40-℃ t0 100-Cinstatic state, instantaneous heat resistanceup t0 120c-20°Cto 80″c in dynamic state, instantaneous heat resistan up to 100°℃.
Characteristics: Special design of clamping dia and rubber part, large range in clamping cable,ultra-strong stretching resistance,waterproof, dustpoof,and high ability
to resist, salt, acid ,alkali, alcohol, grease and common slovent.
Color:Black, grey as special colors(white,red,blue,dark grey)that can be designed at request.

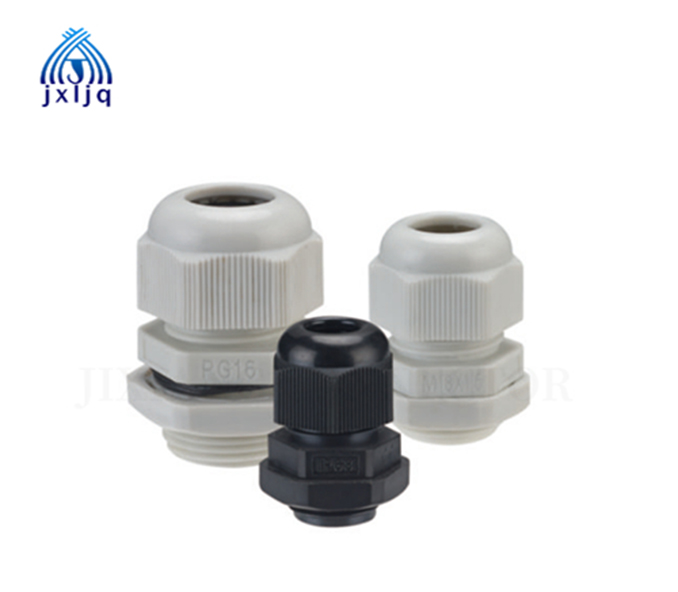

JX-PG Longer thread series
| Model | Thread O.D. (mm) | Holesize (mm) | Thread Length (mm) | Body Thickness (mm) | Cable Range 0(mm) | SpannerSize A&F(mm) |
| JX-PG7-L | 12.5 | Ф12.6-13 | 15 | 10 | 3-6.5 | 18/16 |
| JX-PG7-L | 12.5 | Ф12.6-13 | 15 | 10 | 2~5 | 18/16 |
| JX-PG9-L | 15.2 | Ф15.3-15.5 | 15 | 10 | 4-8 | 22/19 |
| JX-PG9-L | 15.2 | Ф15.3-15.5 | 15 | 10 | 2-6 | 22/19 |
| JX-PG11-L | 18.6 | Ф18.7-19 | 15 | 7-10 | 5-10 | 24/22 |
| JX-PG11-L | 18.6 | Ф18.7-19 | 15 | 7-10 | 3~7 | 24/22 |
| JX-PG13.5-L | 20.4 | Ф20.5-21 | 15 | 8-11 | 6-11 | 27/24 |
| JX-PG13.5-L | 20.4 | Ф20.5-21 | 15 | 8-11 | 5-9 | 27/24 |
| JX-PG1-L6 | 22.5 | Ф22.6-23 | 15 | 11 | 10-14 | 30/27 |
| JX-PG16-L | 22.5 | Ф22.6-23 | 15 | 11 | 7-12 | 30/27 |
| JX-PG21-L | 28.3 | Ф28.5-29 | 15 | 11 | 13-18 | 36/33 |
| JX-PG21-L | 28.3 | Ф28.5-29 | 15 | 11 | 9-16 | 36/33 |
JX-M Longer thread series
| Model | Thread O.D. (mm) | Holesize (mm) | Thread Length (mm) | Body Thickness (mm) | Cable Range 0 (mm) | SpannerSize A&F(mm) |
| JX-M12-L | M12X1.5 | Ф12.2-12.5 | 15 | 10 | 3-3.5 | 18/16 |
| JX-M12-L | M12X1.5 | Ф12.2-12.5 | 15 | 10 | 2-5 | 18/16 |
| JX-M16-L | M16X1.5 | Ф16.2-16.5 | 15 | 10 | 4-8 | 22/19 |
| JX-M16-L | M16X1.5 | Ф16.2-16.5 | 15 | 10 | 2-6 | 22/19 |
| JX-M18-L | M18X1.5 | Ф18.2-18.5 | 15 | 10 | 5-10 | 24/22 |
| JX-M18-L | M18X1.5 | Ф18.2-18.5 | 15 | 10 | 3-7 | 24/22 |
| JX-M20-L | M20X1.5 | Ф20.2-20.5 | 15 | 11 | 6-12 | 27/24 |
| JX-M20-L | M20X1.5 | Ф20.2-20.5 | 15 | 11 | 5-9 | 27/24 |
| JX-M22-L | M22X1.5 | Ф22.2-22.5 | 15 | 11 | 10-14 | 30/27 |
| JX-M22-L | M22X1.5 | Ф22.2-22.5 | 15 | 11 | 7-12 | 30/27 |
| JX-M25-L | M25X1.5 | Ф25.2-25.5 | 15 | 11 | 13-18 | 33/33 |
| JX-M25-L | M 25X1.5 | Ф25.2-25.5 | 15 | 11 | 9-16 | 33/33 |
| JX-M32-L | M32X1.5 | Ф32.2-32.5 | 15 | 11 | 18-25 | 39/36 |
| JX-M32-L | M32X1.5 | Ф32.2-32.5 | 15 | 11 | 13-20 | 39/36 |
