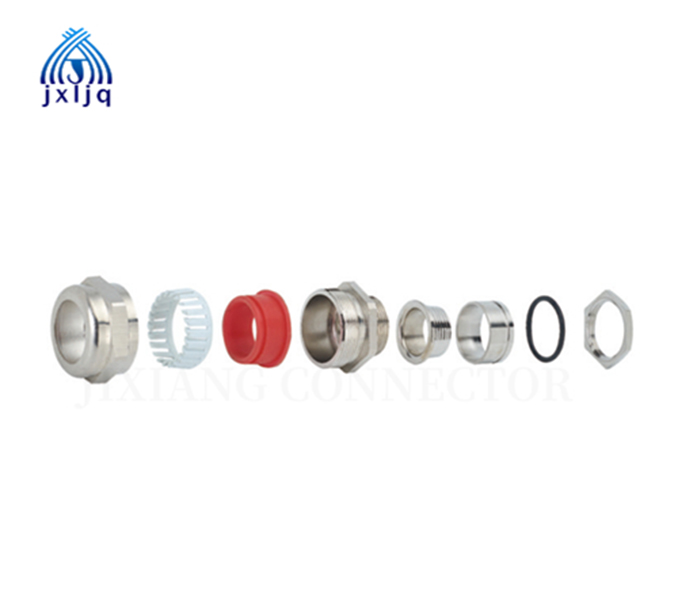

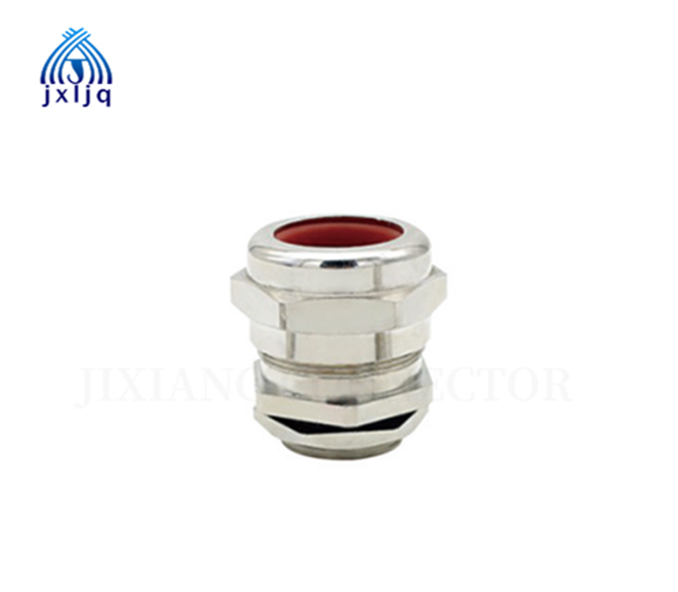

JX-1 Series Explosion-proof Cable Gland

1.Maintain inherent mechanical properties in high-risk locations.
2.For armored cable design, whether it is steel wire armored, woven armored,jacket armored can be quickly installed;
3.Suitable for heavy duty places, high sealing, high tensile, double-layer reinforcement, single-layer armored fastening, effectively provide product service life;

Product Description About Us

JX-1 single seal, explosion-proof Cable Gland

Armored cable connector, also known as ground shield connector, more commonly said is armored cable that is buried power cables, power line transmission cables and equipment as a common connection point industry

Application Features:
1.Maintain inherent mechanical properties in high-risk locations.
2.For armored cable design, whether it is steel wire armored, woven armored,jacket armored can be quickly installed;
3.Suitable for heavy duty places, high sealing, high tensile, double-layer reinforcement, single-layer armored fastening, effectively provide product service life;

Functional Features:
1.Fast and effective fastening and sealing.
2.Suitable for pre-sheathed clamping and sealing, making explosion-proof performance more superior;
3.Used in explosion-proof equipment, motor, electrical box, its double-layer tight seal, single-layer armor tight, more reliable, more with a higher load-bearing capacity and high sealing performance.

JX-1 single seal, explosion-proof Cable Gland

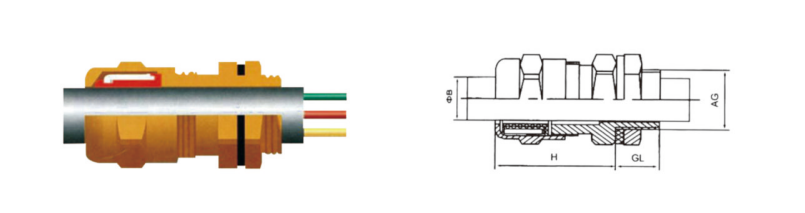

Thread(Metric) Thread(NPT/G Cable range Hmm Lmm Hexag onal size
Thread Metric Series Code Thread NPT Series Code G Series Code Bmm Amm Across flats Across corners
M16*1.5 JX-08-M16
JX-10-M16
3/8″ JX-08-NPT3/8
JX-10-NPT3/8
JX-08-G3/8
JX-10-G3/8
5-8
6-10
3-6
4-8
30
30
12
12
24
24
28
28
M20*1.5 JX-14-M20
JX-16-M20
JX-18-M20
1/2″ JX-14-NPT1/2
JX-16-NPT1/2
JX-18-NPT1/2
IX-14-G1/2
JX-16-G1/2
JX-18-G1/2
9-14
10-16
13-18
6-11
7-12
9-14
30
30
32
12
12
12
24
24
30
28
28
35
M25*1.5 JX-21-M25
JX-24-M25
3/4″ JX-21-NPT3/4
JX-24-NPT3/4
JX-21-G3/4
JX-24-G3/4
15-21
17-24
11-17
13-20
35
35
13
13
36
40
42
47
M32*1.5 JX-28-M32
JX-K2-M32
1″ JX-28-NPT1
JX-32-NPT1
JX-28-G1
JX-32-G1
20-28
23-32
16-23
18-26
39
39
15
15
46
46
53
53
M40*1.5 JX-35-M40
JX-38-M40
11/4″ JX-35-NPT11/4
JX-38-NPT11/4
JX-35-G11/4
JX-38-G11/4
26-35
31-38
21-29
25-32
43
43
15
15
55
55
64
64
M50*1.5 JX-41-M50
JX-44-M50
11/2″ JX-41-NPT11/2
JX-44-NPT11/2
JX-41-G11/2
JX-44-G1i/2
34-41
37-44
28-35
31-38
48
48
15
15
65
65
75
75
M63*1.5 JX-50-M63
JX-55-M63
2″ JX-50-NPT2
JX-55-NPT2
JX-50-G2
JX-55-G2
40-50
43-55
33-43
36-47
53
53
16
16
80
80
92
92
M75*1.5 JX-63-M75
JX-68-M75
21/2″ JX-63-NPT21/2
JX-68-NPT21/2
JX-63-G2
JX-68-G21/2
50-63
54-68
42-53
45-58
58
58
16
16
96
96
111
111
M88*2 JX-72-M88
JX-79-M88
3″ JX-72-NPT3
JX-79-NPT3
JX-72-G3
JX-79-G3
62-72
67-79
52-62
56-67
64
64
18
18
114
114
134
134
M110*2 JX-89-M110
JX-105-M110
4″ JX-89-NPT4
JX-105-NPT4
JX-89-G4
JX-105-G4
78-89
38-104.5
65-75
74-91
70
70
18
18
128
138
148
148
