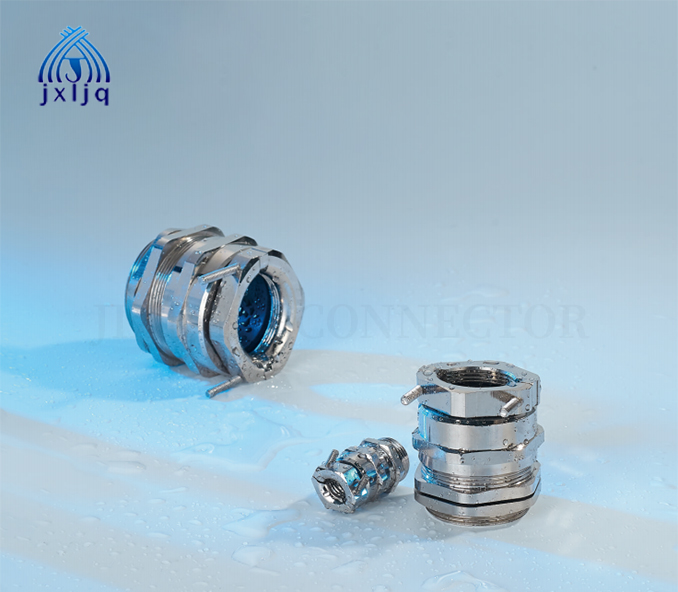

Material: Brass with nickel platedClaw: Nylon PA
sealing : NBR
Thread Type: Metric/PG
Test Standard:EN50262/EN62444
Protection class:IP68(the wire/cable is in clamping range, andassemble O-Ring on the groove)
Range of temperature:- 40°C to +100℃
Product Description:
Material: Brass with nickel platedClaw: Nylon PA
sealing : NBR
Thread Type: Metric/PG
Test Standard:EN50262/EN62444
Protection class:IP68(the wire/cable is in clamping range, andassemble O-Ring on the groove)
Range of temperature:- 40°C to +100℃
Application: Suitable for all sealing, fixed, non-slip, the occasion of high temper-
ature requirements.
Remark: If you need other materials of sealing element. such asSilicone, EPDM, etc.Pls feel free to contact us!
| AG Thread | Cable Range (mm) | Thread Length (mm) | Body Height (mm) | Spanner Size (mm) | Thread O.D (mm) | Panel Mounting Hole (mm) |
| JX-PG7-DL | 3-6.5 | 5 | 25 | 14 | 12.5 | 12.5-12.8 |
| JX-PG9-DL | 4-8 | 6 | 27 | 17 | 15.2 | 15.2-15.5 |
| JX-PG11-DL | 5-10 | 6 | 29 | 20 | 18.6 | 18.6-18.9 |
| JX-PG13.5-DL | 6-12 | 6.5 | 31 | 22 | 20.4 | 20.4-20.7 |
| JX-PG16-DL | 10-14 | 6.5 | 31 | 24 | 22.5 | 22.5-22.8 |
| JX-PG21-DL | 13-18 | 7 | 37 | 30 | 28.3 | 28.3-28.6 |
| JX-PG29-DL | 18-25 | 8 | 42 | 40 | 37 | 37-37.3 |
| JX-PG36-DL | 22-32 | 8 | 48 | 50 | 47 | 47-47.3 |
| JX-PG42-DL | 32-38 | 9 | 50 | 57 | 54 | 54-54.3 |
| JX-PG48-DL | 37-44 | 10 | 51 | 64 | 59.3 | 59.3-59.6 |
| AG Thread | Cable Range (mm) | Thread Length (mm) | Body Height (mm) | Spanner Size (mm) | Thread O.D (mm) | Panel Mounting Hole (mm) |
| JX-M12A-DL | 3-6.5 | 5 | 25 | 14 | 12 | 12-12.3 |
| JX-M12B-DL | 4-8 | 6 | 27 | 17 | 12 | 12-12.3 |
| JX-M14-DL | 4-8 | 6 | 27 | 17 | 14 | 14-14.3 |
| JX-M16A-DL | 4-8 | 6 | 27 | 17 | 16 | 16-16.3 |
| JX-M16B-DL | 5-10 | 6 | 29 | 20 | 16 | 16-16.3 |
| JX-M18-DL | 5-10 | 6 | 29 | 20 | 18 | 18-18.3 |
| JX-M2OA-DL | 6-12 | 6.5 | 31 | 22 | 20 | 20-20.3 |
| JX-M2OB-DL | 10-14 | 6.5 | 31 | 24 | 20 | 20-20.3 |
| JX-M22-DL | 10-14 | 6.5 | 31 | 24 | 22 | 22-22.3 |
| JX-M24-DL | 10-14 | 6.5 | 31 | 24/27 | 24 | 24-24.3 |
| JX-M25-DL | 13-18 | 7 | 37 | 30 | 25 | 25-25.3 |
| JX-M27-DL | 13-18 | 7 | 37 | 30 | 27 | 27-27.3 |
| JX-M28-DL | 13-18 | 7 | 37 | 30 | 28 | 28-28.3 |
| JX-M30-DL | 13-18 | 8 | 37 | 30/32 | 30 | 30-30.3 |
| JX-M32-DL | 18-25 | 8 | 42 | 40 | 32 | 32-32.3 |
| JX-M33-DL | 18-25 | 8 | 42 | 40 | 33 | 33-33.3 |
| JX-M36-DL | 18-25 | 8 | 42 | 40 | 36 | 36-36.3 |
| JX-M37-DL | 18-25 | 8 | 42 | 40 | 37 | 37-37.3 |
| JX-M40-DL | 22-32 | 8 | 48 | 50 | 40 | 40-40.3 |
| JX-M42-DL | 22-32 | 8 | 48 | 50 | 42 | 42-42.3 |
| JX-M47-DL | 22-32 | 8 | 48 | 50 | 47 | 47-47.3 |
| JX-M48-DL | 22-32 | 8 | 48 | 50/52 | 48 | 48-48.3 |
| JX-M50-DL | 32-38 | 9 | 50 | 57 | 50 | 50-50.3 |
| JX-M54-DL | 32-38 | 9 | 50 | 57 | 54 | 54-54.3 |
| JX-M56-DL | 32-38 | 9 | 50 | 57/59 | 56 | 56-56.3 |
| JX-M60-DL | 37-44 | 10 | 51 | 64 | 60 | 60-60.3 |
| JX-M63-DL | 37-44 | 10 | 51 | 64/68 | 63 | 63-63.3 |
| JX-M64-DL | 37-44 | 10 | 51 | 64 | 64 | 64-64.3 |
