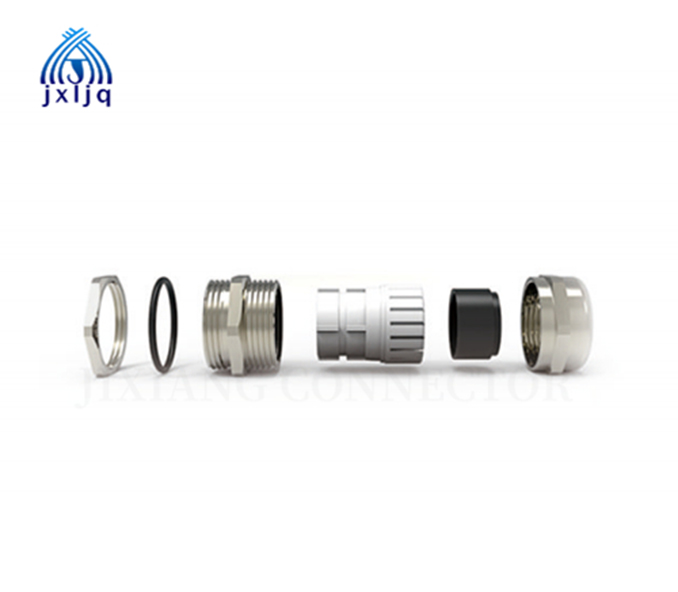

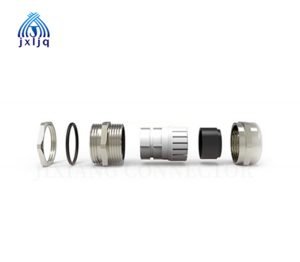

Brass cable gland through type

Material: Brass, nickel plated
Claw: PA
Sealing and sealing ring: NBR
Approvals:IP68.ISO9001.TUV
Protection degree: IP68
Temperature Resistance: -40°C to 100″C,short time to 120°c.
Thread length: Standard Thread type is used for the equipment which has inner thread or for the thin board.Longer Thread type is used for the thick board.
Function: Easy installation, simply insert cable through the assembled gland andtighten gland locknut until cable is secured.These cable glands are designed to withstand water, dust, salt,acid-base, alcohol, oil and commonsolvent.

Product Description About Us

Product Features

Material: Brass, nickel plated
Claw: PA
Sealing and sealing ring: NBR
Approvals:IP68.ISO9001.TUV
Protection degree: IP68
Temperature Resistance: -40°C to 100″C,short time to 120°c.
Thread length: Standard Thread type is used for the equipment which has inner thread or for the thin board.Longer Thread type is used for the thick board.
Function: Easy installation, simply insert cable through the assembled gland andtighten gland locknut until cable is secured.These cable glands are designed to withstand water, dust, salt,acid-base, alcohol, oil and commonsolvent.

Metric thread type

Code Thread AG Cable range
(mm)
Thread O.D
(mm)
Mounting hole
diameter (mm)
Thread length
GL(mm)
Joint length
H(mm)
Spanner size
(mm)
JX-M12-TR M12X1.5 6.5-3 12 12-12.2 7 19 14
JX-M14-TR M14X1.5 45142 14 14-14.2 7 19 17
JX-M16-TR M 16X1.5 45142 16 16-16.2 8 20 18
JX-M18-TR M18X1.5 45204 18 18-18.2 8 21 20
JX-M20-TR M20X1.5 45266 20 20-20.2 8 22 22
JX-M22-TR M22X1.5 45213 22 22-22.2 8 23 24
JX-M24-TR M24X1.5 45213 24 24-24.2 9 25 24/27
JX-M25A-TR M25X1.5 45213 25 25-25.2 9 25 24/27
JX-M25B-TR M25X1.5 45154 25 25-25.2 9 27 27
JX-M25C-TR M25X1.5 18-13 25 25-25.2 9 27 30/27
JX-M27A-TR M27X1.5 18-13 27 27-27.2 9 27 30
JX-M27B-TR M27X2 18-13 27 27-27.2 9 27 30
JX-M28A-TR M28X1.5 18-13 28 28-28.2 9 27 30
JX-M28B-TR M28X2 18-13 28 28-28.2 9 27 30
JX-M30A-TR M30X1.5 18-13 30 30-30.2 9 29 30/32
JX-M30B-TR M30X2 18-13 30 30-30.2 9 29 30/32
JX-M32A-TR M32X1.5 22-15 32 32-32.2 10 29 35
JX-M32B-TR M32X1.5 20-16 32 32-32.2 10 29 35
JX-M32C-TR M32X2 22-15 32 32-32.2 10 29 35

Metric thread type

Code Thread AG Cable range
(mm)
Thread O.D
(mm)
Mounting hole
diameter (mm)
Thread length
GL(mm)
Joint length
H(mm)
Spanner size
(mm)
JX-M36A-TR M36X1.5 25-18 36 36-36.2 10 31 40
JX-M36B-TR M36X2 25-18 36 36-36.2 10 31 40
JX-M37A-TR M37X1.5 25-18 37 37-37.2 10 31 40
JX-M37B-TR M37X2 25-18 37 37-37.2 10 31 40
JX-M40A-TR M40X1.5 25-18 40 40-40.2 11 31 40/45
JX-M40B-TR M40X2 25-18 40 40-40.2 11 31 40/45
JX-M40C-TR M40X1.5 30-22 40 40-40.2 11 35 45
JX-M40D-TR M40X2 30-22 40 40-40.2 11 35 45
JX-M42A-TR M42X1.5 30-22 42 42-42.2 11 35 45
JX-M42B-TR M42X2 30-22 42 42-42.2 11 35 45
JX-M60A-TR M60X1.5 44-37 60 60-60.2 13 38 64
JX-M60B-TR M60X2 44-37 60 60-60.2 13 38 64
JX-M63A-TR M63X1.5 44-37 63 63-63.2 13 38 64/68
JX-M63B-TR M63X2 44-37 63 63-63.2 13 38 64/68
JX-M64A-TR M64X1.5 44-37 64 64-64.2 13 38 64/68
JX-M64B-TR M64X2 44-37 64 64-64.2 13 38 64/68
JX-M72-TR M72X2 52-42 72 72-72.2 15 42 78
JX-M75-TR M75X2 52-42 75 75-75.2 15 42 78
JX-M80-TR M80X2 62-50 80 80-80.2 15 45 86/88
JX-M88-TR M88X2 70-60 88 88-88.2 15 45 98
JX-M100-TR M100X2 80-70 100 100-100.2 15 45 110

PG thread type

Code Thread AG Cable range
(mm)
Thread O.D
(mm)
Mounting hole
diameter (mm)
Thread length
GL(mm)
Spanner size
(mm)
JX-PG7-TR PG7 6.5-3 12.5 12.5-12.7 7 14
JX-PG9-TR PG9 8-4 15.2 15.2-15.4 8 17
JX-PG11-TR PG11 10-5 18.6 18.6-18.8 8 20/21
JX-PG13.5-TR PG13.5 12-6 20.4 20.4-20.6 8 22
JX-PG16-TR PG16 14-10 22.5 22.5-22.7 9 24
JX-PG21-TR PG21 18-13 28.3 28.3-28.5 9 30
JX-PG25-TR PG25 22-15 32 32-32.2 10 35
JX-PG29-TR PG29 25-18 37 37-37.2 11 40
JX-PG36-TR PG36 33-25 47 47-47.2 12 50
JX-PG42-TR PG42 38-32 54 54-54.2 13 57
JX-PG48-TR PG48 44-37 59.3 59.3-59.5 14 64
JX-PG63-TR PG63 52-42 72 72-72.2 15 78
