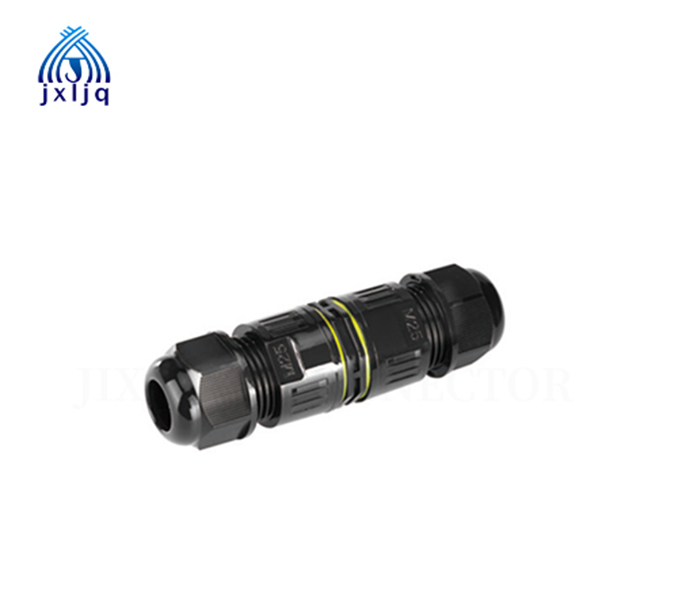

JX-XM25

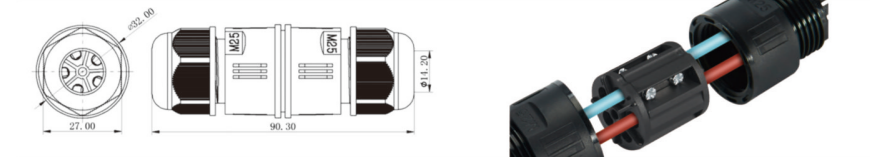

1.Insert the wire into the hole of the copper piece, then fasten the handle (as shown)
2.lnstall the locking torque of 0.6-0.8 N.M, not too large torque, affect product performance
3, Assembly gap should be less than 0.2 mm, assembly should be tight, not loose

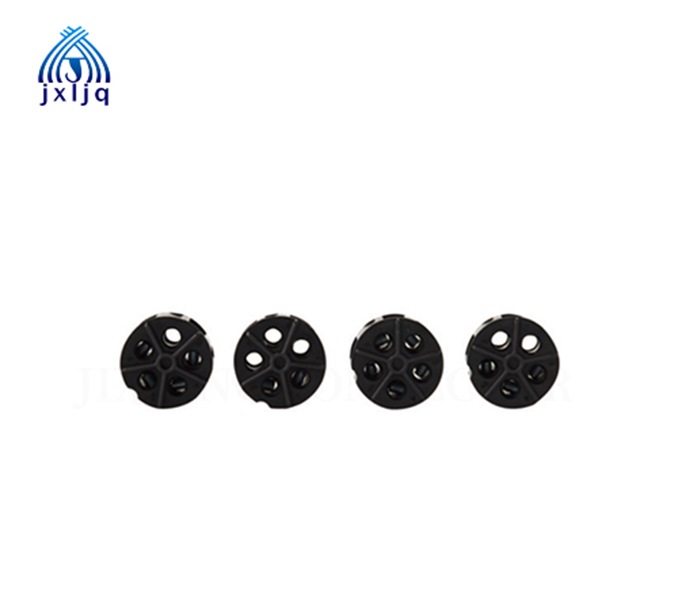

4, Optional wire clip plug specifications(as shown in Figure )
| Model | TXM25-21 5-8 | XM25-22 9-12 | TXM25-23 10-14 | TXM25-24 5-8 | TXM25-25 9-12 | TXM25-26 10-14 | TXM25-27 5-8 | TXM25-28 9-12 | TXM25-29 10-14 | TXM25-30 5-8 | TXM25-31 9-12 | TXM25-32 10-14 |
| Quantity/bag | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| core | 2 Core | 2 Core | 2 Core | 3 Core | 3 Core | 3 Core | 4 Core | 4 Core | 4 Core | 5 Core | 5 Core | 5 Core |
| Cable range(mm) | 5-8 | 9-12 | 10-14 | 5-8 | 9-12 | 10-14 | 5-8 | 9-12 | 10-14 | 5-8 | 9-12 | 10-14 |
| Per Pcs weight(g) | 44.2 | 40.8 | 39.6 | 44.2 | 42.8 | 41.6 | 46.2 | 44.8 | 43.6 | 48.2 | 47 | 45.8 |
| one carton weight (kg) | 16.3 | 15.8 | 15.4 | 17 | 16.6 | 16.1 | 17.7 | 17 | 16.8 | 18.5 | 18 | 17.6 |
Protection grade:Ip68
Temperature resistance:-40℃to105℃
Storagetemperature:room temper
Main material:nylon PA66(flame retardant)
O-ring material:silicone(environmental protection material)
Applicable cable scope:Ф3-6.5 Ф9-12 Ф10-14
Wiring method:screw crimping
Conductormaterial:Y2 brass nickel plated high quality stainless steel
Applicableline square number: 0.5~2.5mm
Test voltage: 2500V
Rated voltage/current:400V/25A
Flame retardant grade:V0
Packaging quantity:10pcs per bag,24 bags per carton,
carton size:49cm*35cm*23cm
