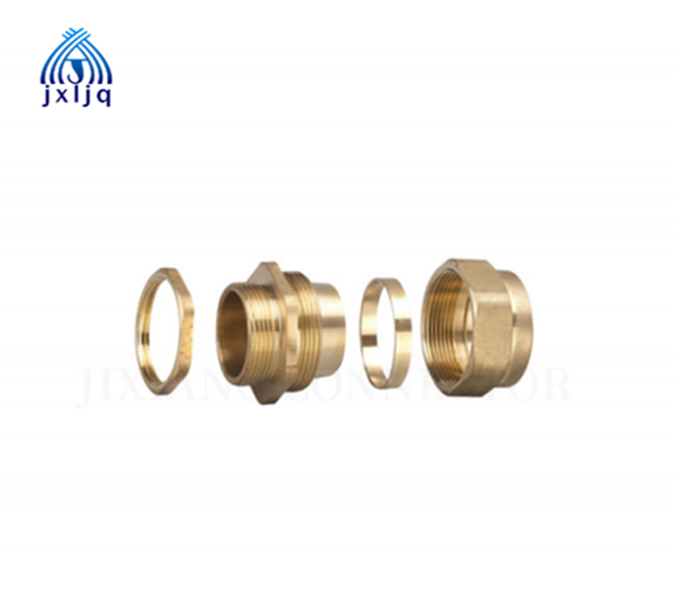

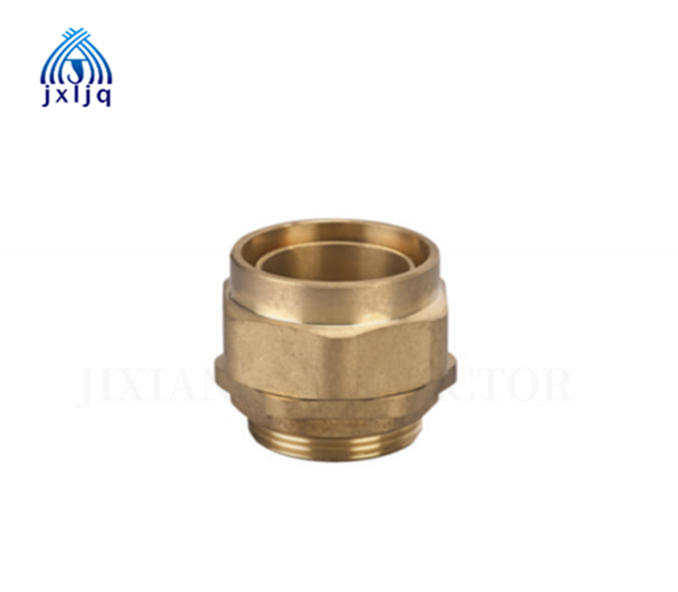

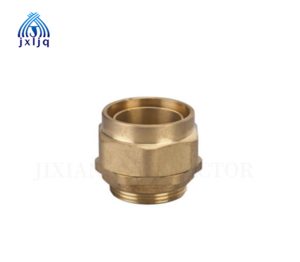

BW Cable Gland

Standard:BS6121
Protection class:lP30
Temperature:-80″”C+600“c
Thread options:Metric , NPT,BSP &PG
Application: Dry indoor for use with all types ofsWA cables

Product Description About Us

Metric thread type

Armoured Waterproof Cable Gland

Armored Cable Glands:CW、BW、BWC
Type: single Compression Gland
Material: Brass With Or Without Nickel Plated
Standard:BS6121
Protection Class:IP66 & IP67
Temperature:-20°C+80°C
Thread Options: Metric , NPT,BSP & PG

Product features

Type:BW type armoured glandMaterial:Brass with or without nickel
Standard:BS6121
Protection class:lP30
Temperature:-80″”C+600“c
Thread options:Metric , NPT,BSP &PG
Application: Dry indoor for use with all types ofsWA cables
Accessories:Matching accessories available like PvC shrreuds,hrouds locknuts & earth tag
Function:Bw type glands provide mechanical cable retention &electrical wire continuity via armoured wire

Thread Thread size”C” Minimum length of threadD Cable Range Max”A”(mm) Cable Range Max”B”(mm)
METRIC NPT
JX-BW20S M20 1/2″ 10 11.50 15.50
JX-BW20L M20 1/2 10 14.00 20.50
JX-BW25S M25 3/4 10 18.00 24.00
JX-BW25L M25 3/4″ 10 20.00 27.00
JX-BW32S M32 1 10 26.30 33.50
JX-BW32L M32 1 10 26.30 33. 50
JX-BW40S M40 1.1/4 13 31.50 39.50
JX-BW40L M40 1.1/4″ 13 32.00 40.00
JX-BW50S M50 1.1/2″ 13 38.20 46. 30
JX-BW50L M50 2 13 44.00 52. 60
JX-BW63S M63 2 14 50.10 59. 00
JX-BW63L M63 2.1/2″ 14 56.00 65. 30
JX-BW75S M75 2.1/2″ 15 62.00 71. 60
JX-BW75L M75 3 15 68.00 78. 00
JX-BW90 M90 3″ 20 80.50 91. 00
