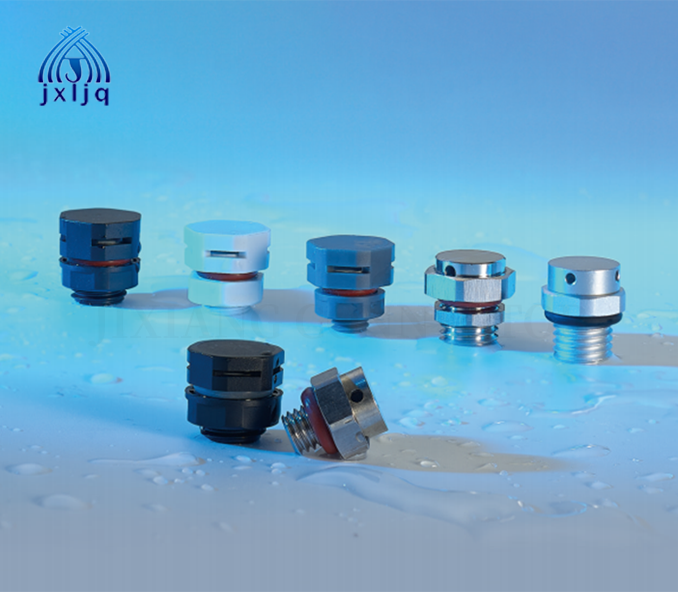

Product Features
Material: Stainless Steel, Nybn Pa6 Brass nickel plated or Aluminum Matehal
Protection: The Deth of waterproof to 3-5M,The O-ring up to lp68
Waterproof level: Anti-vibration and shock tested IEC-60077-1999, according with ROHS
Color: Grey white and black color.
Temperature:-40°C to +120°C, Short time up to +150°CCertificate: ROHS、CE
Airflow: 325ml/min (0.07 bar)Water entry pressure: > 5bar
Function:
1. Waterproof and dustproof;
2. Vent，protect the inside equipment operation normally and long in the seriousenvironment;
3.Heat dissipation,replace or assist in heat sink to lower inside temperature.4.Prolong the product’s service life.

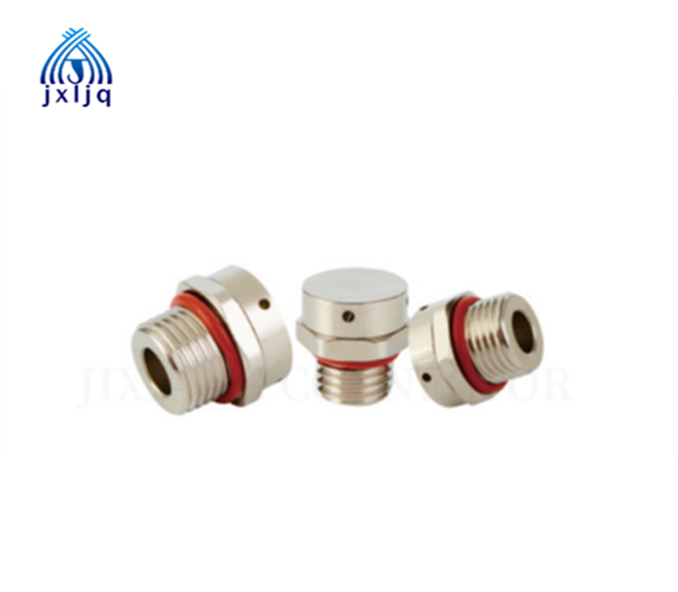

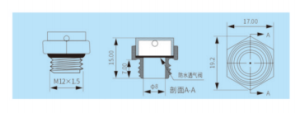

CE ROHS IP67-69 Brass Vent plug
| Spec | Air permeability | Thread length | Total length | Thread diameter | spanner |
| M5X0.8 | ≥1.2L/mim/cm2@70mbar | 7mm | 15mm | 5mm | 10mm |
| M6X1 | ≥1.2L/mim/cm2@70mbar | 7mm | 15mm | 6mm | 10mm |
| M8X1.25 | ≥1.2L/mim/cm2@70mbar | 7mm | 13mm | 8mm | 12mm |
| M12X1.5 | ≥1.2L/mim/cm2@70mbar | 8mm | 17mm | 12mm | 16mm |
| M12X1.5 | ≥1.2L/mim/cm2@70mbar | 10mm | 18mm | 12mm | 17mm |
| M16X1.5 | ≥1.2L/mim/cm?@70mbar | 10mm | 19.5mm | 16mm | 20mm |
| M20X1.5 | ≥1.2L/mim/cm2@70mbar | 10mm | 19.5mm | 20mm | 22mm |

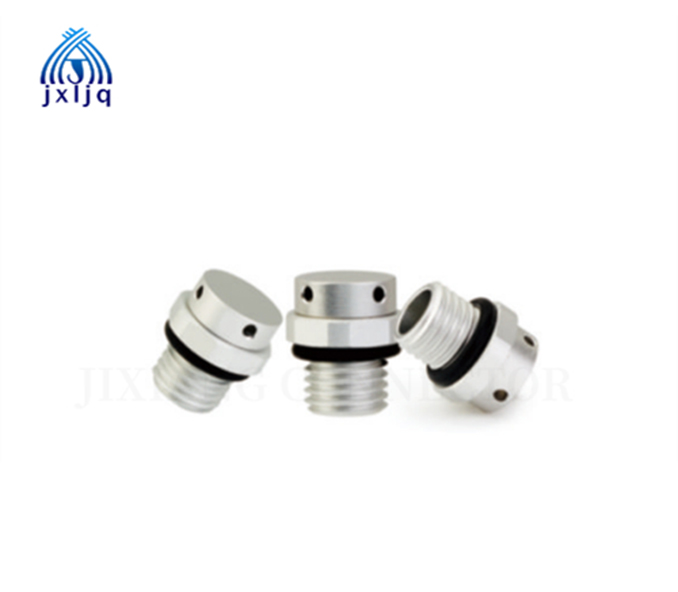

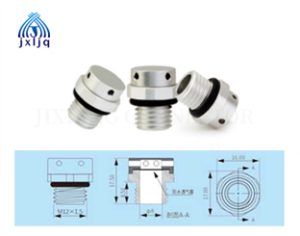

CE ROHS IP67-69 Aluminum Vent plug
| Spec | Air permeability | Thread length | Total length | Thread diameter | spanner |
| M20X1.5 | ≥1.2L/mim/cm2@70mbar | 10mm | 19.5mm | 20mm | 22mm |
| M24X1.5 | ≥1.2L/mim/cm2@70mbar | 8mm | 23mm | 24mm | 30mm |
| M25X1.5 | ≥1.2L/mim/cm2@70mbar | 8mm | 23mm | 25mm | 30mm |
| G3/8 | ≥1.2L/mim/cm2@70mbar | 10mm | 20mm | 16.6mm | 22mm |
| Gl/4 | ≥1.2L/mim/cm2@70mbar | 7mm | 15mm | 13.3mm | 17mm |

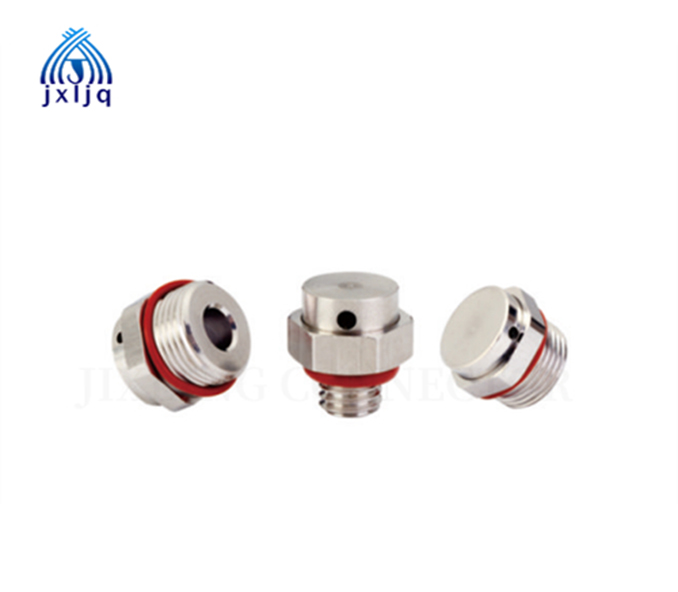

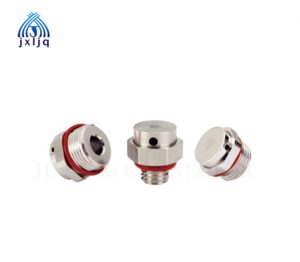

CE ROHS IP67-69 Stainless steel Vent plug
| Spec | Air permeability | Thread length | Total length | Thread diameter | spanner |
| M5X0.8 | ≥1.2L/mim/cm2@70mbar | 7mm | 15mm | 5mm | 10mm |
| M6X1 | ≥1.2L/mim/cm2@70mbar | 7mm | 15mm | 6mm | 10mm |
| M8X1.25 | ≥1.2L/mim/cm2@70mbar | 7mm | 16mm | 8mm | 14mm |
| M10X1 | ≥1.2L/mim/cm2@70mbar | 8mm | 16mm | 10mm | 17mm |
| M 10X1.5 | ≥1.2L/mim/cm2@70mbar | 8mm | 16mm | 10mm | 17mm |
| M12X1.5 | ≥1.2L/mim/cm2@70mbar | 7mm | 15mm | 12mm | 17mm |
| M12X1.5 | ≥1.2L/mim/cm2@70mbar | 10mm | 18mm | 12mm | 17mm |
| M15X1.5 | ≥1.2L/mim/cm2@70mbar | 10mm | 19.5mm | 15mm | 22mm |
| M16X1.5 | ≥1.2L/mim/cm2@70mbar | 10mm | 19.5mm | 16mm | 22mm |
| M20X1.5 | ≥1.2L/mim/cm2@70mbar | 10mm | 19.5mm | 20mm | 22mm |
| M 24X1.5 | ≥1.2L/mim/cm2@70mbar | 8mm | 23mm | 24mm | 30mm |
| M25X1.5 | ≥1.2L/mim/cm2@70mbar | 8mm | 23mm | 25mm | 30mm |
| G3/8 | ≥1.2L/mim/cm2@70mbar | 10mm | 20mm | 16.6mm | 22mm |
| Gl/4 | ≥1.2L/mim/cm2@70mbar | 7mm | 15mm | 13.3mm | 17mm |

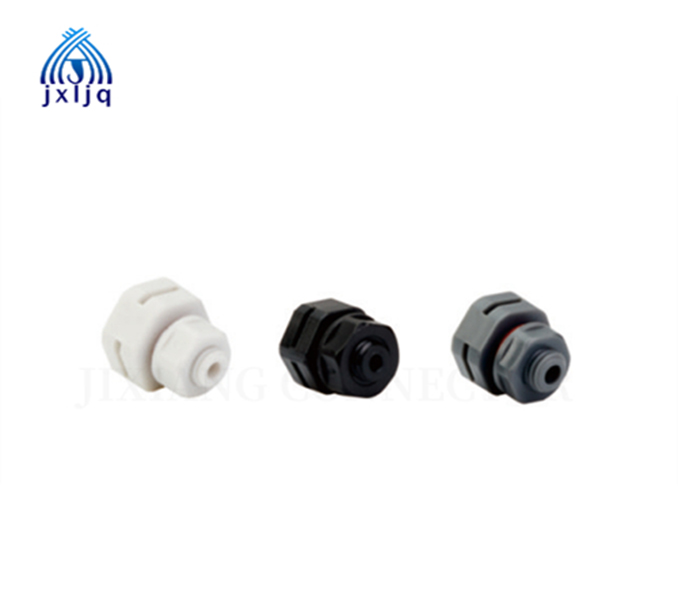

CE ROHS IP67-69 Nylon Vent plug
| Spec | Air permeability | Thread length | Total length | Thread diameter | spanner |
| M5X0.8 | ≥1.2L/mim/cm2@70mbar | 7mm | 13mm | 5mm | 12mm |
| M6X1 | ≥1.2L/mim/cm2@70mbar | 7mm | 13mm | 6mm | 12mm |
| M8X1.25 | ≥1.2L/mim/cm2@70mbar | 10mm | 18mm | 8mm | 17mm |
| M10X1.5 | ≥1.2L/mim/cm2@70mbar | 10mm | 18mm | 10mm | 17mm |
| M12X1 | ≥1.2L/mim/cm2@70mbar | 10mm | 16mm | 12mm | 16mm |
| M12X1.5 | ≥1.2L/mim/cm2@70mbar | 10mm | 18mm | 12mm | 17mm |
| M12X1.5 | ≥1.2L/mim/cm2@70mbar | 10mm | 16mm | 12mm | 16mm |
| M16X1.5 | ≥1.2L/mim/cm2@70mbar | 10mm | 19.5mm | 16mm | 22mm |
| M20X1.5 | ≥1.2L/mim/cm2@70mbar | 10mm | 18mm | 20mm | 27mm |
| M24X1.5 | ≥1.2L/mim/cm2@70mbar | 15mm | 24mm | 24mm | 36mm |
| M40X1.5 | ≥1.2L/mim/cm2@70mbar | 15mm | 24mm | 40mm | 56mm |
