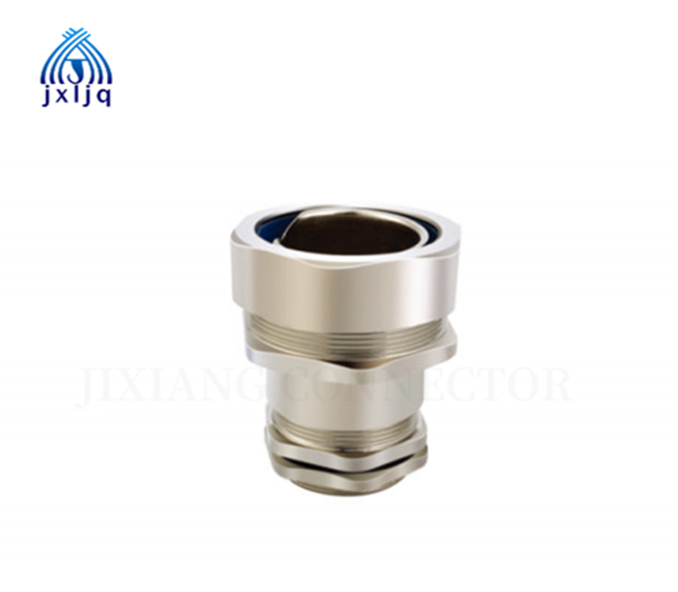

Brass Hose Connector
Material: external metal: nicke-plated brass;
Seal: NBR,PA6; Ferrule: brass
Sealing ring: thermoplastic elastomer or PTEE
Protection degree: IP65
Temeperature Range: Static:- 40℃ to100℃, Short time to 120°C
Material: external metal: nicke-plated brass;
Seal: NBR,PA6; Ferrule: brass
Sealing ring: thermoplastic elastomer or PTEE
Protection degree: IP65
Temeperature Range: Static:- 40℃ to100℃, Short time to 120°C
Brass Hose Connector
Material: external metal: nicke-plated brass;
Seal: NBR,PA6; Ferrule: brass
Sealing ring: thermoplastic elastomer or PTEE
Protection degree: IP65
Temeperature Range: Static:- 40℃ to100℃, Short time to 120°C

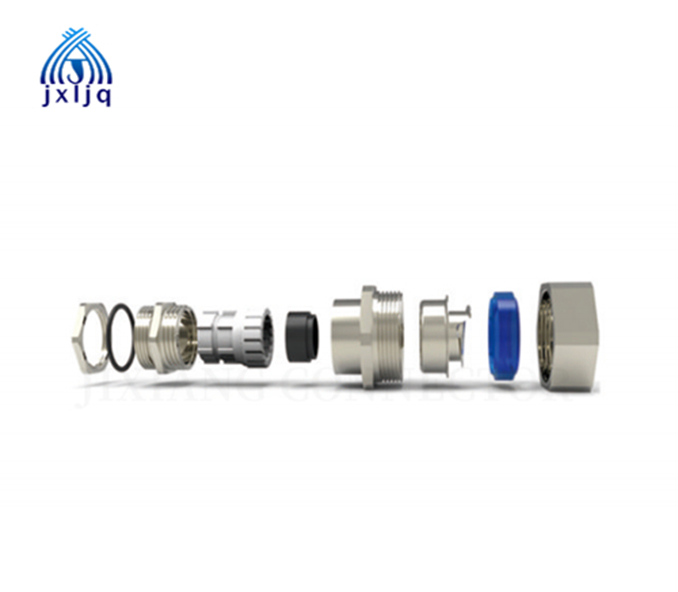

Metric thread type、PG thread type
| Model | Thread (mm) |
Card pin range | Thread length (mm) |
Spanner size (mm) |
Fits to tubing size (Nominal inner)mm |
| JX-M12-MH | M12×1.5 | 3-6.5 | 7 | 20 | φ6 |
| JX-M16-MH | M16×1.5 | 4-8 | 8 | 22 | φ8 |
| JX-M18-MH | M18×1.5 | 5-10 | 8 | 24 | φ10 |
| JX-M20-MH | M20×1.5 | 6-12 | 8 | 26 | φ12 |
| JX-M22-MH | M20×1.5 | 10-14 | 8 | 30 | φ15 |
| JX-M24-MH | M24×1.5 | 10-14 | 9 | 30 | φ15 |
| JX-M25-MH | M25×1.5 | 10-16 | 9 | 30 | φ15 |
| JX-M27-MH | M27×2.0 | 13-18 | 9 | 36 | φ20 |
| JX-M30-MH | M30×2.0 | 13-18 | 9 | 36 | φ20 |
| JX-M32-MH | M32×1.5 | 15-22 | 10 | 36 | φ20 |
| JX-M36-MH | M36×2.0 | 18-25 | 10 | 43 | φ25 |
| JX-M40-MH | M40×1.5 | 22-30 | 11 | 52 | φ32 |
| JX-M48-MH | M48×2.0 | 25-32 | 11 | 55 | φ32 |
| JX-M50-MH | M50×1.5 | 32-38 | 12 | 60 | φ38 |
| JX-M56-MH | M56×2.0 | 32-38 | 12 | 60 | φ38 |
| Model | Thread (mm) |
Card pin range | Thread length (mm) |
Spanner size (mm) |
Fits to tubing size (Nominal inner)mm |
| JX-PG7-MH | PG7 | 3-6.5 | 7 | 20 | φ6 |
| JX-PG9-MH | PG9 | 4-8 | 8 | 22 | φ8 |
| JX-PG11-MH | PG11 | 5-10 | 8 | 24 | φ10 |
| JX-PG13.5-MH | PG13.5 | 6-12 | 8 | 26 | φ12 |
| JX-PG16-MH | PG16 | 8-16 | 8 | 30 | φ15 |
| JX-PG21-MH | PG21 | 13-18 | 9 | 36 | φ20 |
| JX-PG29-MH | PG29 | 18-25 | 11 | 43 | φ25 |
| JX-PG36-MH | PG36 | 25-32 | 12 | 52 | φ32 |
| JX-PG42-MH | PG42 | 32-38 | 13 | 60 | φ38 |
| JX-PG48-MH | PG48 | 37-44 | 14 | 60 | φ38 |
