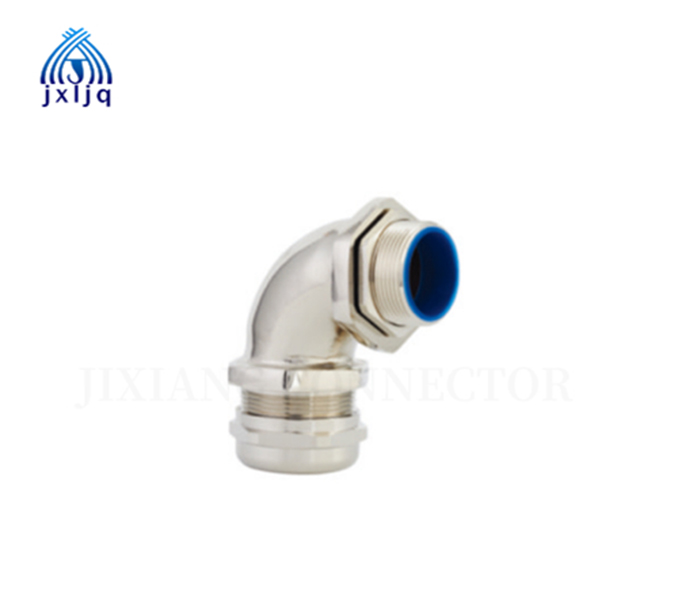

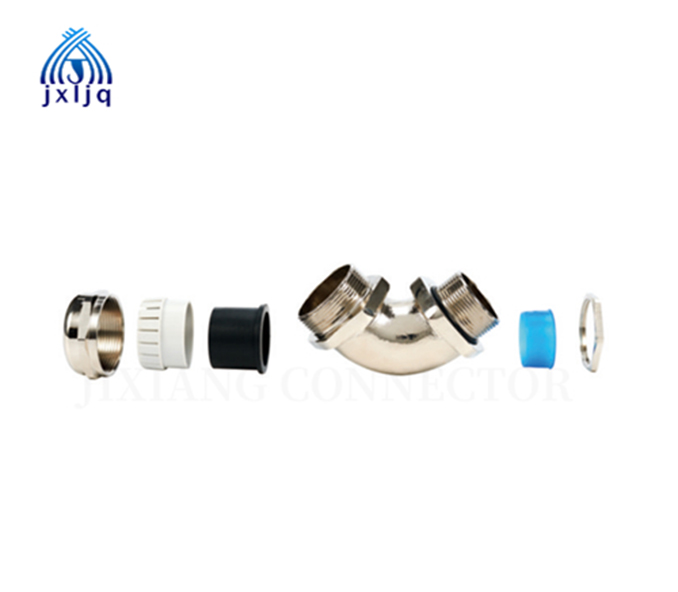

90 Degree Elbow Metal Cable Gland
Material: brass
Protection degree: IP67
Plated: nickel
Furnished with insulating liner
PG Thread and G thread can also be produced
1.Can be used in flexible metallic conduit or liquid tight conduit inPower plant,Power transmission system, communicationsystem,building factory, railway,train, transportation system project, airconditioner, various machines,automates controlling plant.And itprotects the electrical wire or cable outside the construction andplant.
2.Use to positively bond the conduit to a box or enclosure
Metric thread type
| Model | Cable range | Thread O.D. (mm) | Thread length (mm) | Total length (mm) | Spanner size (mm) |
| JX-M12-6.5-9D | 3-6.5 | 12 | 9 | 45 | 20/21 |
| JX-M16-6.5-9D | 3-6.5 | 16 | 9 | 45 | 20/21 |
| JX-M16-8-9D | 4-8 | 16 | 9 | 45 | 20/21 |
| JX-M16-10-9D | 5-10 | 16 | 10 | 57 | 20/25 |
| JX-M18-10-9D | 5-10 | 18 | 10 | 57 | 20/25 |
| JX-M20-10-9D | 5-10 | 20 | 10 | 57 | 20/25 |
| JX-M20-12-9D | 6-12 | 20 | 10 | 57 | 24/25 |
| JX-M20-14-9D | 10-14 | 20 | 15 | 58 | 24/30 |
| JX-M22-14-9D | 10-14 | 22 | 15 | 58 | 24/30 |
| JX-M24-12-9D | 6-12 | 24 | 15 | 58 | 24/30 |
| JX-M24-14-9D | 10-14 | 24 | 15 | 58 | 24/30 |
| JX-M25-14-9D | 10-14 | 25 | 15 | 58 | 24/30 |
| JX-M25-16-9D | 10-16 | 25 | 15 | 75 | 28/34 |
| JX-M25-18-9D | 13-18 | 25 | 15 | 75 | 30/34 |
| JX-M27-16-9D | 10-16 | 27 | 15 | 75 | 28/34 |
| JX-M27-18-9D | 13-18 | 27 | 15 | 75 | 30/34 |
| JX-M30-16-9D | 10-16 | 30 | 15 | 75 | 28/34 |
| JX-M30-18-9D | 13-18 | 30 | 15 | 75 | 30/34 |
| JX-M32-18-9D | 13-18 | 32 | 15 | 75 | 30/34 |
| JX-M32-22-9D | 15-22 | 32 | 15 | 75 | 30/34 |
| JX-M32-25-9D | 18-25 | 32 | 15 | 90 | 40/43 |
| JX-M33-25-9D | 18-25 | 33 | 15 | 90 | 40/43 |
| JX-M36-22-9D | 15-22 | 36 | 15 | 90 | 36/43 |
| JX-M36-25-9D | 18-25 | 36 | 15 | 90 | 40/43 |
| JX-M40-25-9D | 18-25 | 40 | 15 | 90 | 40/43 |
| JX-M40-30-9D | 22-30 | 40 | 15 | 105 | 50/55 |
| JX-M40-32-9D | 22-32 | 40 | 15 | 115 | 50/55 |
| JX-M42-9D | 22-32 | 42 | 15 | 115 | 50/55 |
| IX-M48-9D | 22-32 | 48 | 15 | 115 | 50/55 |
| JX-M50-9D | 30-38 | 50 | 15 | 115 | 55/60 |
| JX-M56-9D | 30-38 | 56 | 15 | 115 | 55/60 |
| JX-M60-9D | 37-44 | 60 | 18 | 125 | 65/70 |
| JX-M63-9D | 37-44 | 63 | 18 | 125 | 75/75 |
| JX-M64-9D | 37-44 | 64 | 18 | 125 | 65/70 |
